dynamic mixer / batch / granulates / laboratory
P 1 - 6

Add to MyDirectIndustry favorites
Compare this product
dynamic mixer / batch / granulates / laboratory dynamic mixer / batch / granulates / laboratory - P 1 - 6
{{requestButtons}}

Characteristics

  • Technology:

    dynamic

  • Batch/continuous:

    batch

  • Applications:

    granulates

  • Application domain:

    laboratory, for the pharmaceutical industry

  • Other characteristics:

    stainless steel, compact, granulator

  • Capacity:

    Min.: 0.25 l (0.07 gal)

    Max.: 6 l (1.59 gal)

Description

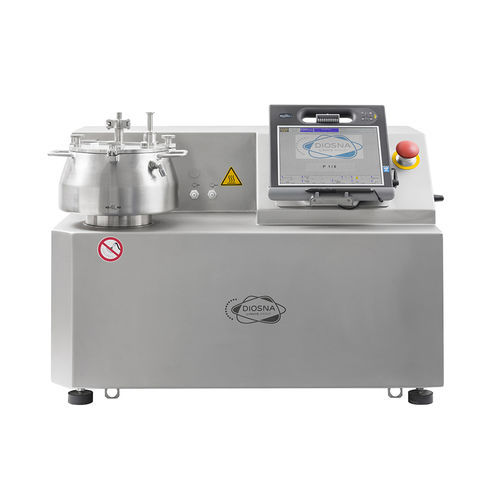

LABORATORY MIXER- GRANULATOR P 1-6

MIXING AND GRANULATING OF WET GRANULATES
The DIOSNA P1-6 is designed for the production of dry mixtures (e.g. inhalants) and wet granulates for small and smallest batches. The user-friendly desktop device is designed for easy operation and cleaning. The bowls are connected to the basis machine by a bayonet system and can easily be taken off and placed. The chopper drive is pneumatically coupled/decoupled. It is operated via a touch screen.

Advantages
Modular principle for easy retrofitting of components
No tools are required for bowl change; chopper coupling is pneumatically operated
Non-contact safety switch on the mixer lid, no safety hood required
Mixing units can completely and easily be dismounted and cleaned
Easy to operate compact desktop device
Highly efficient design of tools and bowl made by DIOSNA

Options
Tablet PC instead of standard touch screen
Effective power measurement and PAT software
Pumps, pressure vessels and nozzles for granulation fluid
Mobile base cabinet
Inertisation with nitrogen
Insulated design for containment usage
