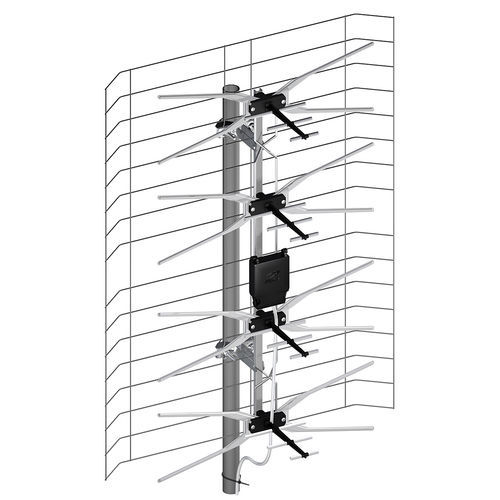

Broadband antenna ASP-8W LUX

UHFVHFexternal

The ASP-8W LUX broadband antenna with LNA-177 amplifier receives DVB-T/T2 TV signals in the VHF and UHF bands in horizontal polarization. • Performs in densely built-up areas • Wide half power angle • Power supply included Broadband TV antenna (ch.6-60), packed in foil. Aluminum active elements, electro-galvanized steel structural components. The set includes shielded RF amplifier and AC/DC adapter with RF/DC separator allowing to provide power to the amplifier, with the same cable which sends the signal from the antenna to the receiver. It is possible to use the antenna without a mast (e.g. if we want the antenna placed on a window-sill). This model of antenna is equipped with shielded amplifier LNA-177 B4009, with F-type output. Specifications Manufacturer - DIPOL RF antenna type - Multiband General data Dimensions - mm - 790 × 560 × 150 Weight - kg - 0.5 Packaging - type - Film Specifications Impedance - Ohm - 300 Balun - No Channels - 6 - 48 Polarization - H VHF VHF polarization - H Amplifier Built-in amplifier - Yes Amplifier - type - LNA-177 Input impedance - Ohm - 300 input impedance - Ohm - 75 Gain - dB - 16...20 (channels 6 – 12), 24...30 (channels 21- 48) Max. mast/tube diameter - mm - 40 Power supply - voltage - V - 12 Power supply - current - mA - 55
