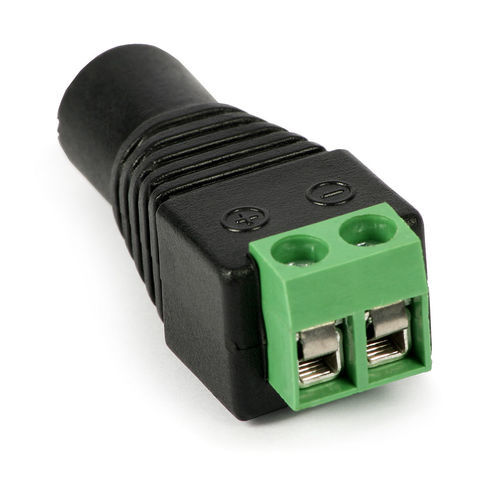

2-pole electrical plug G-55

Quick-connect socket G-55 connects a two-wire power cable to allow a standard DC connection (2.1/5.5). • DC 2.1/5.5 mm socket • Screw cable terminals • Max. voltage 24VDC To mount the socket, strip the wires, push them into terminals, tighten the two screws with a screwdriver. Specifications Connector type 1 - Cable terminals Connector type 2 - DC 2.1/5.5 socket Specyfikacja techniczna Material - Basic - Plastic DC voltage - V - max 24 Dimensions - mm - 37 × 14 × 12
