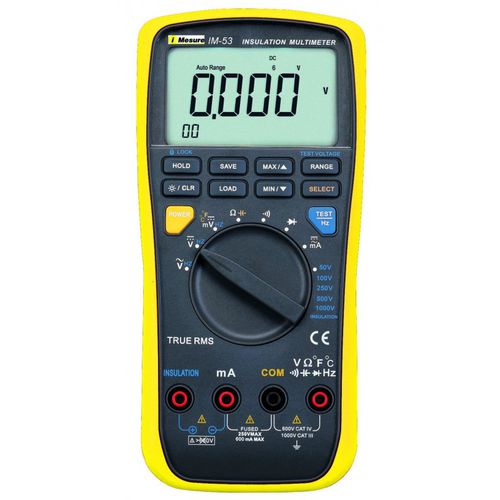

Digital multimeter IM53portable1000 Vcat III
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with thermometer, with insulation tester
- Power supply
- AA LR6 batteries
- Applications
- industrial
- Other characteristics
- AC/DC, TRMS
- Max DC voltage
Min.: 0.06 V
Max.: 1,000 V
- Max AC voltage
Min.: 6 V
Max.: 1,000 V
- Max DC current
Min.: 60 mA
Max.: 600 mA
- Max AC current
Min.: 60 mA
Max.: 600 mA
- Max resistance measure
Min.: 600 Ohm
Max.: 40,000,000 Ohm
- Max capacity measure
Min.: 10 µF
Max.: 100 µF
- Max frequency measure
Min.: 60 Hz
Max.: 1,000,000 Hz
- DC voltage precision
0.09 %
- AC voltage precision
1 %
- DC current precision
1 %
- AC current precision
1.5 %
- Resistance precision
0.9 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 537 °C
(998.6 °F)- Length
96.7 mm
(3.81 in)- Width
202.8 mm
(7.98 in)- Height
46 mm
(1.81 in)
