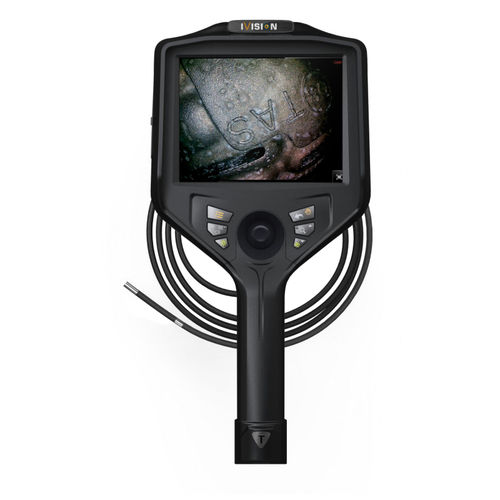

Flexible videoscope iVH

for machinesportable

iVision's iVH series videoscopes are non-destructive inspection and testing tools that can be used to inspect the interior of machines or ducts. The iVH inspection system offers high-resolution images and innovative features to facilitate all of your inspections. • Front / Side or Dualview • Probe length: From 1.50m to 5m • Articulation: 360° • Resolution: 1M pixels - 1280 x 720 • Protection: Probe: IP67 • Interchangeable monitor • Zoom and scale function, image processing • IP67 probe • CMOS technology The iVH series videoscope is modularly designed. Configured with a 5.1-inch HD screen, it can be interchangeable with a 3.5-inch small screen, which is suitable for different inspection requirements. The monitor and probe can be separated by one button Key Features: • High temperature alarm function: Orange alarm when the temperature is over 65 ℃ ; Red alarm and shutdown when the temperature is over 80 ℃ . • The image can be transmitted to an HD display via HDMI or Wi-Fi via a smartphone. • Dual battery design, 8 hours working time; real-time battery indication. • Display resolution: 1280*960, high light, wide color gamut, all viewing angles, ensure clear image, rich colors and good color reproduction. • Light Source - Ceramic Front Light/Rear Mounted Cold Fiber Optic - Maximum: 100000+Lx 1~9 Levels Adjustable Light • IP67 protection rating • Comparative Measurements: Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object. Image processing modes: • White Balance: Automatic white balance with high color reduction; manual white balance control according to inspection needs.
