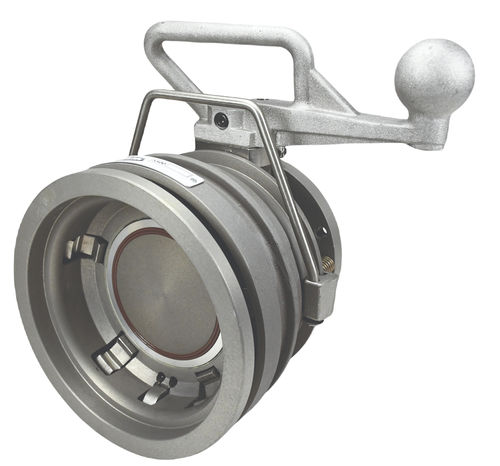

Hydraulic coupler 5500B

industrialfor rail tankersAPI certified

Application : Combined with API adapters, these couplers are suitable for rail car and tank truck loading or unloading Features : Locking five-cam design provides easy alignment and tight connection Modular design allows various face seal combinations to be compatible with different alternative fuels, performance levels, and applications Replaceable nose seal can be changed without removing coupler from loading arm Fully interlocked collar creates a secure connection 4” TTMA inlet mounting flange connection Ball-end handle for easy and comfortable operation No special tools needed for maintenance Specifications : Flow rate: 600 GPM at 3 PSI pressure drop; maximum flow rate: 1,000 GPM Fully compliant with API RP 1004:2003 specifications Seal operating temperature: Baylast: -35°F to 212°F (-37°C to 100°C) EPDM: -20°F to 250°F (-28°C to 121°C) FKM-B: -10°F to 400°F (-23°C to 204°C) FKM-GFLT: -35°F to 400°F (-34°C to 204°C) Fluorosilicone: -50°F to 350°F (-45°C to 176°C) HiFluor: -15°F to 400°F (-26°C to 204°C)
