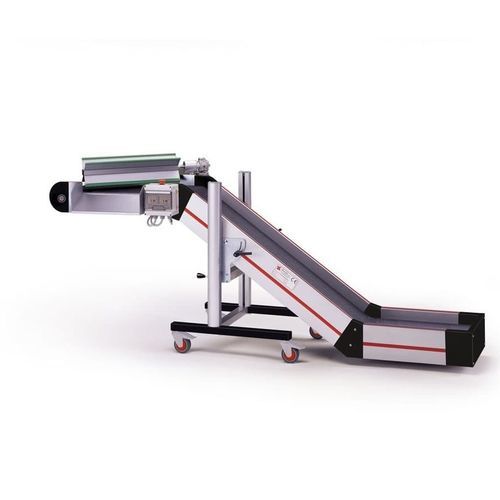

Strip belt conveyor

inclinedstraighthandling

Description
Conveyors for straight, inclined, articulated or inverted plastic parts are available in standard or custom dimensions and can be configured for inline handling and automation integration.

Main features

• Useful belt width: 250 - 650 mm
• Double-tilt configuration for part orientation
• Height adjustable on vertical rails

Options

• External contact for robot interface
• Timed advance or continuous operation modes
• Photocell at the end of the conveyor
• Light or sound alarm
• Adjustable side edges
• Polycarbonate or mesh guarding
• Polyurethane belt equipped with cleats
• Paddle, roller or endless-screw separators

Technical specifications

• Application: conveyors for plastic parts (straight, inclined, articulated or inverted)
• Dimensions: available in standard or custom dimensions
• Useful belt width: 250 - 650 mm
• Tilt: double-tilt configuration
• Height adjustment: on vertical rails
• Robot interface: external contact
• Operation modes: timed advance or continuous operation
• Detection: photocell at the end of the conveyor
• Signaling: light or sound alarm
• Guidance: adjustable side edges
• Protection: polycarbonate or mesh guarding
• Belt type: polyurethane strip equipped with cleats
• Sorting: paddle, roller or endless-screw separators
