Machine warning system EC-24VB

Industrial Machine Alert Kit | Dry Contact Interface & Pager (EC-24VB)

Optimize the Overall Equipment Effectiveness (OEE) of your production lines and reduce machine downtime. This automated alert system directly connects your industrial equipment to operators on the floor. As soon as an anomaly occurs, the information is instantly transmitted to the relevant technician for immediate action.

Expert's Take: This kit is a highly effective preventive and corrective maintenance solution. By converting machine electrical signals into direct mobile alerts, it eliminates idle time caused by visually monitoring stack lights — all without any connection to the plant's IT network.

Key Field Advantages

Automated alerts: The interface box instantly detects state changes (fault, end of cycle, material shortage, critical threshold) and transmits the information without human intervention.
Universal compatibility: The interface accepts a wide voltage range (5–24V DC), allowing connection to any PLC, programmable controller, or machine relay — new or legacy.
Radio security & independence: The proprietary radio protocol operates fully autonomously. It does not overload the plant's Wi-Fi network and remains immune to cyberattacks or network outages.
Ready-to-Use Pack Contents

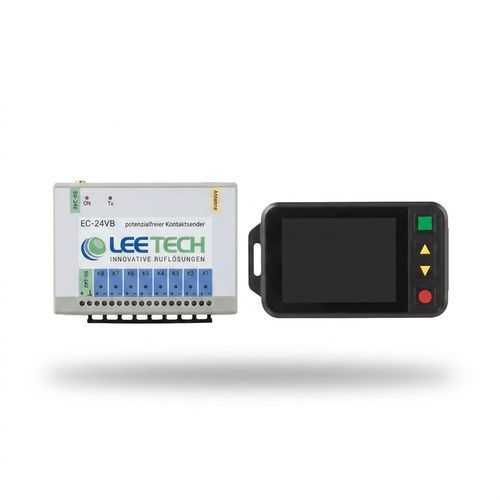

1 × 8-channel dry contact / voltage input interface box (Ref. EC-24VB)
1 × High-visibility colour pager receiver (Ref. EC-24CP)
Power supplies and mounting accessories included
Technical Specifications & Reliability

Feature Details
Interface capacity Up to 8 independent channels for precise fault/machine identification
Operator signalling EC-24CP colour backlit display + configurable alerts (vibration, sound, flash) for high-noise environments
Power supply 5–24V DC input tolerance for direct connection to existing electrical panels
Commitments & Warranties

Certified equipment: CE compliant, meets robustness requirements for harsh industrial environments
Warranty: 2-year manufacturer's warranty
Support: Technical assistance included for wiring and switching contact configuration
