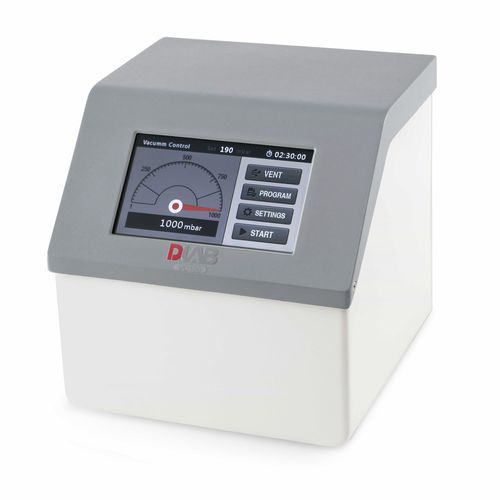

Vacuum control unit VC100

• A wide range of measurement and control, 1-1,000mbar  • Two control modes of single-point control and programmed control available for choice as needed • Can store up to 5 programs, each containing up to 5 segments of programming control • A large-size TFT touch screen display control allows easy operation • All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials and can effectively resist corrosion caused by organic solvents, water, acid      and alkali • A built-in vent valve can feed inert gas into system equipment  • One-stroke decompression allows easy installation and dismantling of vacuum system • Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection. Can also be operated in the normally open statue of pump Vacuum setting range: 1-1000mbar Vacuum measurement range: 1-1000mbar Control operation mode: Single-point control mode, Programmed control mode Control program: Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) Setting method: Touch screen setting Display: 5'' TFT Sensor overload pressure: 1,500mbar Connector diameter: 8mm Materials in contact with vapor: PTFE, PP, silicone and ceramics power: 600w Overall dimensionsW×D×H: 189×207×193mm weight: 4.0KG Power supply: 110—240V,50Hz/60Hz Operating environment: 10℃～40℃，≤80%RH
