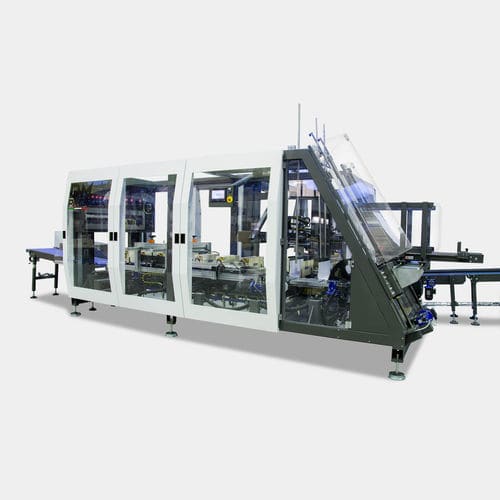

Horizontal tray packer DRON

wrap-aroundautomaticcontinuous

DRON automatic tray packer & wrap around machine that works with flat/laid boxes; its main function is to pick and form the tray/flat box and fill it with previously grouped products positioned in the desired configuration. It can be equipped with different loading, grouping and stacking systems, according to the performance required and the type of product. Once the required configuration is created, the box is transported towards the closing station where, thanks to the hot melt system, the flaps will be sealed and closed with a spot of hot glue. The DRON machine is available both in the intermittent version and in the continuous version. Various outfeed possibilities of the machine, since it can be followed by any other DM PACK machinery. Automatic, compact and versatile tray packer & wrap around machine, capable of working with a vast range of different products. The box storage height is automatically adjustable, while the length is adjustable thanks to the knobs and the millimetric scale, for rapid and simple format changes. The machine can be equipped with additional loading systems (stackers, multipack formers, diverters, etc.). In the intermittent version, the boxes are opened using suction cups and insertion of the multipack in the tray or box is carried out by a pick & place system or robotic systems. The tabs are then closed with a spot of hot glue, thanks to the hot melt system. The same machine can create and fill trays, wrap around boxes, tray displays and boxes with lids.
