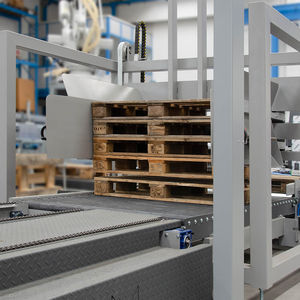

Automatic palletizer TRON 4

Cartesianpositioninghandling

Our range of Cartesian palletisers is composed of two available models, capable of meeting clients’ needs in terms of speed, dimensions and final configuration: TRON COMPACT and TRON 4 SIDES OPEN. Designed and constructed on robust support structures, they boast extreme accessibility and are equipped with light curtains to guarantee safe operator intervention, if necessary. The gripper head (pick & place) can be customised according to the type of product to palletise, and is designed to product measurement to guarantee delicate handling and correct positioning before final positioning. Compact design, reduced dimensions and precise and easy use are the main features of the TRON Cartesian palletisers line. Robust support structure with extremely reduced dimensions CARTESIAN PALLETISER available with one or more bays or in the compact version, with a single bay: new generation, designed for greatly reduced dimensions, easy use and a contained price. Robust support structure hosting the ball recirculation guides on which the LOADER moves and an arm with gripper head for easy product picking. The loader moves along the Cartesian axes X, Y, Z and is controlled by BRUSHLESS or asynchronous MOTORS with an inverter , based on the speed and precision required. Following the program set, the LOADER moves to the product picking point and lifts it thanks to the gripper head equipped with a vacuum suction system, a suction cups or gripper system, according to the type and weight of the product.
