Semi-automatic wrapping robot Robot wrap 600A
stretch film

semi-automatic wrapping robot
semi-automatic wrapping robot
Add to favorites
Compare this product


Characteristics

Operating mode
semi-automatic
Other characteristics
stretch film

Description

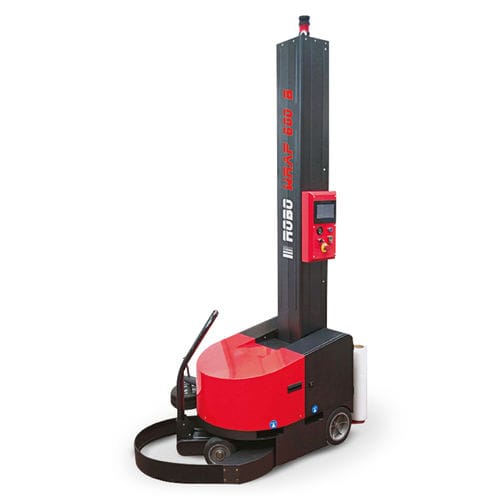

Robot wrap 600A The Robot Wrap 600A is a self-propelled wrapping robot for palletised loads of any shape, size and weight with stretch film. It is equipped with a digital touch screen control panel that means simple, functional management of the programs and the setting of the wrapping parameters.Film tensioning can be adjusted by means of a mechanical brake. Technical characteristics • Hinged column at the base for quick, easy installation • Transmission of reel-holder carriage by chain • Working height 2400 mm • Ambient conditions humidity: ≤ 90\% • Working temperature: from + 0°C to + 40°C • 1300 mm additional to product radius necessary for function • Mushroom head emergency button for CE standards • Safety bumper for machine stop • Max rotation speed 90 m/min • Handlebar for easy handling of motorised robot • Height-adjustable side feeler wheel • Liftable from the side • Colour touch screen control panel • Machine controlled by plc SIEMENS S7/1200 • Autonomy up to 200 pallets without recharging (W 800x L1200X1600mm) • Emergency wheel in case of low battery • Digital adjustment of wraps at the base of the pallet • Digital adjustment of wraps at the top of the pallet • Rotation speed adjustment • Carriage up speed adjustment • Adjustment and control of film tension • Carriage down speed adjustment • Photocell reading delay • Buttons for man/aut machine management
