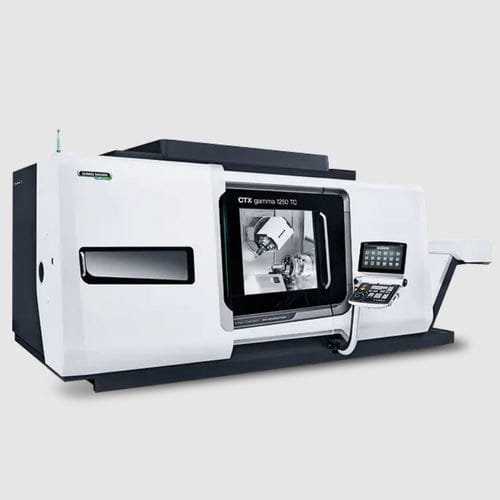

CNC milling-turning center CTX gamma 1250 TC

universal3-axisspindle

Integrated spindle drives with up to 4,000 Nm for maximum cutting performance ISM 102 with 4,000 rpm, 45 kW and 770 Nm in the standard Material removal rate ISM 102 to 1.584 cm3 / min (CK45) Integrated C-axis (0.001 °) Complex turning and milling operations with an ultra-compact Turn&Mill spindle with 220 Nm torque Turning and milling spindle compactMASTER with 12,000 rpm, 36 kW and 220 Nm. Available as high-speed version with 20,000 rpm. 420 mm Y-stroke for more flexibility Automatic tool change. 36-fold disc magazine in standard, max. 180 stations in the optional chain magazine. Optional second tool carrier for highly productive turn & mill machining VDI 40 turret rated at 4,000 rpm, 28 Nm and 10 kW or VDI 40 Direct Drive turret rated at 10,000 rpm, 34 Nm and 14.2 kW "< 30 sec. tool set-up time and < 6 μm repeatability with TRIFIX® precision quick-change interface as standard" Easy to use turret steady rests and turret centres with the technology cycle (optional) Accuracy Maximum precision and temperature stability Direct measuring systems in all axes by Magnescale Cooling of the X / Y / Z-axis motors and the turret drives Maintenance-free linear drive in the Z-axis * with 5 years warranty
