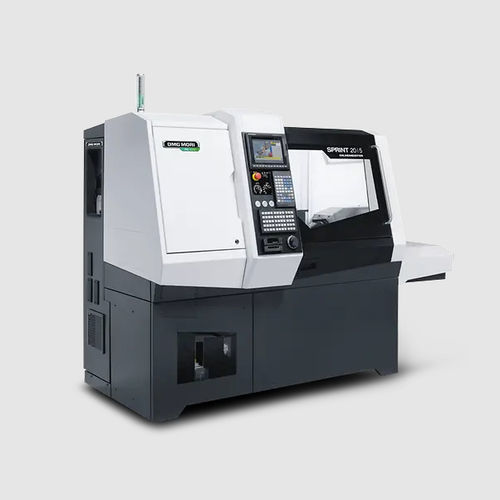

CNC turning center SPRINT 20|5

5-axishigh-rigiditywith linear motor

Automatic turning with 5 linear axes and up to 2 C-axes Main spindle with 10,000 rpm, 14 Nm, 2.2 kW (nominal) Counter spindle with 10,000 rpm, 4.8 Nm, 1.5 kW (nominal) SWISSTYPEkit optional for short and long part turning on one machine Total of 23 tool stations Up to 6 driven tool stations, 4 driven tool stations as standard, 2 driven stations for back-working optional Driven tools spindles 6,000 rpm, 1.43 Nm, 0.9 kW (nominal) Control panel with 10.4" colour display and FANUC 32i 2 control channels, 5 linear axes and up to 2 C-axes Tool Monitoring System with graphical tool load display as option Up to 2 tools working simultaneously Highest rigidity and accuracy Constant stiffness due to large ball guide ways with balanced distance Vertical covers and free chip fall Integrated spindle motors for main and counter spindle with direct measuring systems Thermo-symmetric machine bed design for highest accuracy
