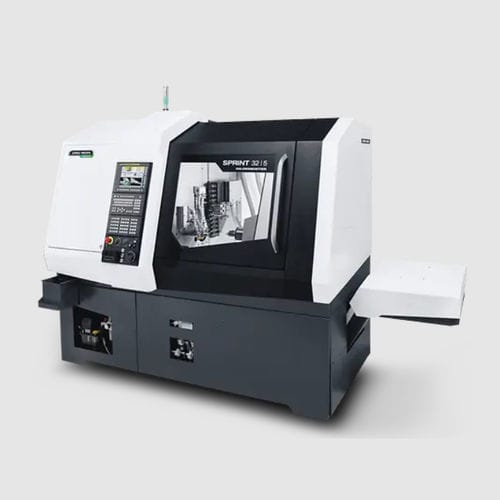

CNC turning center SPRINT 32|5

3-axishigh-rigidity

Automatic turning with 5 linear axes and a C-axis Main spindle with 8,500 rpm, 40,4 Nm, 5.5 kW Counter spindle with 8,500 rpm, 14 Nm, 2.2 kW SWISSTYPEkit optional for short and long part turning on one machine Bar capacity diameter 32 (38) Platform means modularity and flexibility Total of 22 tool stations 4 driven tool stations as standard Driven tools spindles 6,000 rpm, 3 Nm, 1 kW Control panel with 10.4" colour display and FANUC 32i-B Plus 2 control channels, 5 linear axes and a C-axis Tool Monitoring System with graphical tool load display as option Up to 2 tools working simultaneously Highest rigidity and accuracy Platform is milestone for Digitization Constant stiffness due to large ball guide ways with balanced distance Vertical covers and free chip fall Integrated spindle motors for main and counter spindle with direct measuring systems Thermo-symmetric machine bed design for highest accuracy
