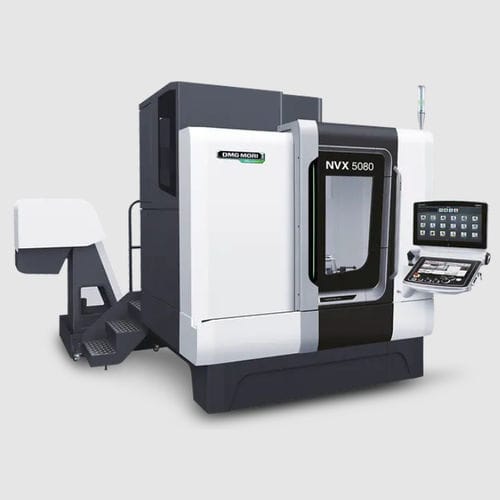

3-axis CNC milling center NVX 5080 2nd Generation

verticalhigh-precisionhigh-speed

Max. workpiece length 1,100 mm Max. workpiece width 600 mm Unprecedented Rigidity and Accuracy - Ultimate Hybrid Structure Super-wide slideways (X- / Y-axis) to minimize quadrant projection High-rigidity roller guides (Z-axis) Optimized column shape substantially reduces thermal displacement Best Chip Disposal Solution in the Industry Coolant tank for collecting casting sludge (option) Through-spindle coolant system (unit on coolant tank) Chip conveyor (internal, spiral type) Pursuit of Usability Accessibility - excellent access to the table and a wide door opening Loading and unloading with a crane - the ceiling part also opens Replacement of spindle unit - the spindle unit to a cartridge which even includes the rear bearings, Outstanding Machining Capability Unmatched High-performance Spindle World’s Best Spindle Technology No. 40 taper spindle achieves overwhelming high-speed machining (speedMASTER) Stable high-accuracy machining made possible by drastically improved spindle run-out accuracy (speedMASTER) No. 50 taper spindle achieves overwhelming heavy-duty cutting (powerMASTER) Thermal expansion compensation by Spindle Growth Sensor (powerMASTER)
