NC boring machine DBD series
horizontal3-axis2-spindle

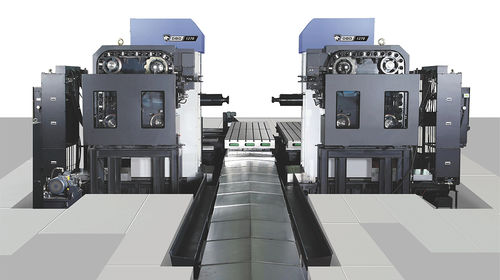

NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 2
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 3
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 4
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 5
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 6
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 7
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 8
NC boring machine - DBD series - DN SOLUTIONS - horizontal / 3-axis / 2-spindle - image - 9
Add to favorites
Compare this product

Characteristics

Control type
NC
Spindle orientation
horizontal
Number of axes
3-axis
Number of spindles
2-spindle
Other characteristics
high-precision, high-productivity, high-speed, high-speed
X travel

7,000 mm, 8,000 mm
(275.59 in, 314.96 in)

Y travel

1,500 mm, 2,000 mm
(59.06 in, 78.74 in)

Z travel

450 mm, 1,000 mm
(17.72 in, 39.37 in)

Power

22 kW, 26 kW
(29.91167 hp, 35.35015 hp)

Description

Twin opposed spindles optimized for concentric boring.High-precision and high-productivity are assured via the simultaneous and bi-directional machining of long and symmetrical workpieces Easy to Operate Stability Max Spindle 3000 r/min Big table for long and symmetrical machining Wide work area through axis extension DBD 1270: 1250 × 7000 mm DBD 1680W: 1600 × 8000 mm
