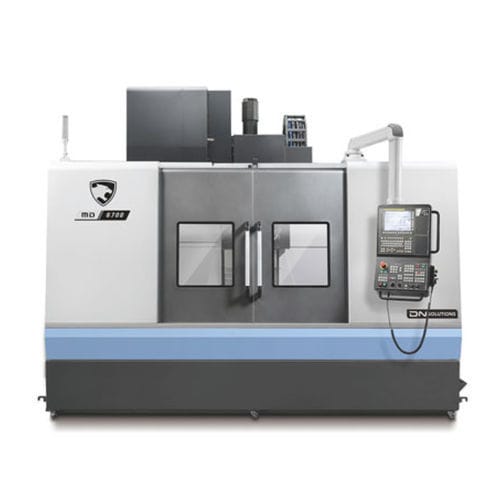

3-axis CNC machining center DVM seriesvertical30 toolscutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Number of tool stations
- 30 tools
- Associated functions
- cutting
- Applications
- for molds, for heavy-duty machining
- Other characteristics
- high-speed, high-productivity, high-power, high-precision, high-rigidity
- X travel
1,020 mm, 1,270 mm
(40.16 in, 50 in)- Y travel
540 mm, 670 mm
(21.26 in, 26.38 in)- Z travel
510 mm, 625 mm
(20.08 in, 24.61 in)- Rotational speed
22 rpm
(138 rad.min-1)- Power
60 kW
(81.58 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
800 kg, 1,000 kg
(1,764 lb, 2,205 lb)- Weight
6,500 kg, 8,500 kg
(14,330.05 lb, 18,739.29 lb)- Overall length
2,462 mm, 2,692 mm
(96.9 in, 106 in)- Overall width
3,350 mm
(131.9 in)- Overall height
2,789 mm, 2,905 mm
(109.8 in, 114.4 in)
Description
These high-rigidity machining centers are designed for the high-productivity machining of precision mold tools and dies, and their powerful spindles facilitate high removal rates and the heavy-duty machining of tough materials.
Reliability
Stability
Improved and longer-lasting performance is assured via a static pressure spindle
Door width has been expanded and now features two-door access
High-efficiency chip management and control
Different swarf management systems and their chip removal capabilities help improve productivity, performance and process reliability.
