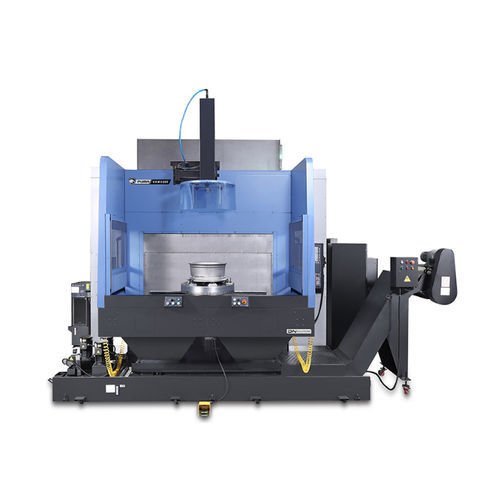

CNC turning center PUMA VAW800vertical2-axis12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools
- Drive system
- servo-driven
- Applications
- for aluminum wheels
- Performance
- high-productivity, high-performance, high-capacity
- Other characteristics
- compact
- Diameter
720 mm
(28.35 in)- Spindle speed
2,000 rpm
(12,566.371 rad.min-1)- Maximum cutting length
340 mm, 350 mm, 440 mm
(13 in, 14 in, 17 in)- Axe X
570 mm
(22 in)- Axe Z
650 mm
(26 in)- Rapids on X
16 m/min
- Rapids on Z
16 m/min
- Nominal power
55 kW
(74.8 hp)- Maximum torque
685 Nm
(505 ft.lb)- Overall lenght
4,470 mm
(176 in)- Overall width
3,842 mm
(151 in)- Overall height
3,675 mm
(145 in)- Weight
13,500 kg
(29,762 lb)
Description
The PUMA VAW7500 Series maximizes wheel machining productivity through the use of two powerful turrets. With an ability to maintain the high cutting capacity of the preceding models, its machining performance has been greatly enhanced.
Reliability
Excellent Machining Capability
Stability
Large Machining Area
Wheel size : 27.5 inch
Efficient chip disposal and automation-ready structure
High-efficiency twin chip disposal system improves productivity.
VIDEO
Catalogs
No catalogs are available for this product.
See all of DN SOLUTIONS‘s catalogsOther DN SOLUTIONS products
Turning Centers
