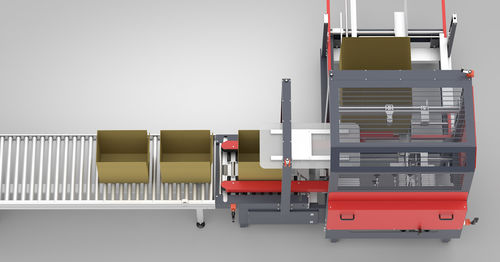

Automatic cardboard box/case erector BEadhesive tape

automatic cardboard box/case erector
automatic cardboard box/case erector
automatic cardboard box/case erector
automatic cardboard box/case erector
automatic cardboard box/case erector
automatic cardboard box/case erector
Add to favorites
Compare this product
indicative price

Characteristics

Operational mode
automatic
Technology
adhesive tape
Throughput

9 p/min, 12 p/min, 15 p/min, 17 p/min

Description

Case erector BE The ideal equipment for large boxes Information Automatic equipment for the formation of boxes type RSC and closed inferior by means of adhesive tape, glue paper or hot glue. Manually adjustable quickly and easily to work with different carton formats. Designed to be integrated into production lines, they are robust and reliable machines, ideal for high levels of production Advantage •Versions for medium and large cases •Quick and accurate format changes •Configurable for all case closure types •Smooth conveying, without damaging the boxes •Non-stop production, no more box jams CASE ERECTOR BE TECHNICAL DATASHEET MODEL BE2 BE3 BE4 BE5 Max. output 17 cases/min 15 cases/min 12 cases/min 9 cases/min Maximum case sizes L 450 mm 650 mm 750 mm 850 mm (Outter sizes) W 310 mm 410 mm 510 mm 610 mm H 500 mm 600 mm 650 mm 700 mm Minimum case sizes L 210 mm 300 mm 300 mm 400 mm (Outter sizes) W 120 mm 200 mm 300 mm 300 mm H 100 mm 130 mm 160 mm 200 mm Admitted box types RSC / HSC / FEFCO / 0200/0201 Available bottom sealing types Tape, Hotmelt Glue, Gummed Paper UTILIES Pneumatic working Pressure 6 Bar 6 Bar 6 Bar 6 Bar Air consumption 30 l/cases 30 l/cases 40 l/cases 40 l/cases Electrical power 230/400V III+N+T Maximum electrical consumption 1 Kw MACHINE DATA Magazine capacity* 150 uni 150 uni 150 uni 150 uni Working height 550-750 mm 550-750 mm 550-750 mm 550-750 mm Approx. weight 375 kg 425 kg 575 kg 650 kg Dimensions L 2410 mm 2537 mm 2637 mm 2737 mm (tape version) W 1980 mm 2278 mm 2486 mm 2836 mm H 1742 mm 1781 mm 1981 mm 1960 mm

VIDEO
