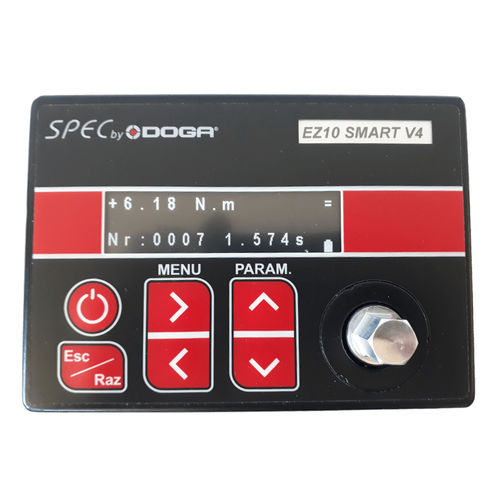

bench-top torque meter / for torque wrenches / for screwdriver
DOGA EZ V4

Add to MyDirectIndustry favorites
Compare this product
bench-top torque meter / for torque wrenches / for screwdriver bench-top torque meter / for torque wrenches / for screwdriver - DOGA EZ V4
{{requestButtons}}

Characteristics

  • Type:

    bench-top

  • Applications:

    for torque wrenches, for screwdriver

  • Torque:

    Min.: 0.2 Nm (0.15 ft.lb)

    Max.: 20 Nm (14.75 ft.lb)

Description

The EZ series smart version is well equipped with additional functionalities to provide superior flexibility and full traceability of tools. The built-in Transducer ensures rapid and accurate calibration for all types of fastening tools (torque wrenches, electric and air screwdrivers). The memorized readings are easily transfered to computer or printer through RS 232C port.

The external transducers may also be connected to the EZ SMART to make a compact portable torque readout for torque audit along the assembly line. The series offers user-friendly small menu, real time clock, RS232 output and includes 500 datas FIFO memory capacity. It also includes mini/ok/maxi torque limits, peak, first peak, track measuring mode, calibration display, automatic and manual reset.

BENEFITS

Adaptability
DOGA EZ V4 torque testers incorporate an internal static torque sensor to control shut-off screwdrivers, torque wrenches
Static or dynamic external brush sensors can be connected to EZ torque testers to cover all the tools including pulsed ones (hydro mode)

Quality
EZ torque testers are equipped with statistical functions including Cm and Cmk indicators according to the AFNOR standard

Ergonomics
The EZ torque tester can be placed on a horizontal worktop or fixed on a vertical plane by the side notches
The chassis and the facade of the testers are made of steel and they are equipped with anti-skid pads
