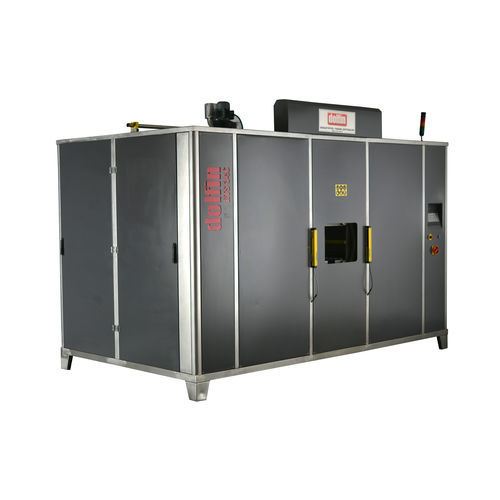

Spray washing machine RTS series

ultrasonicalkalineparts

Dolfin RTS series Rotational basket washing machines are compact parts washing machines that are used for precise and high level cleaning of small and complex surface parts and that are problematic to wash. The parts that are placed in the washing basket through single positioning and/or in the form of bulk are first sprayed in the device as to have the alkaline chemical washing liquid reaches every point of the parts with high pressure. Then, the washing cell is filled with this liquid and the contact of the parts with ultrasonic sound waves is ensured. Therefore, through thin-section detail points, internal holes and channels are cleaned at a high level. In such process, the basket is rotated in the vertical axis and the spraying and ultrasonic effect is penetrated to every point of the part. At the end of this process, while the washing liquid is directed to its own tank, the same process is applied for rinsing and/or for liquids in the other tank. Parts which contact with liquids terminates are completely dried with pressurized hot air and vacuum processes. All the processes that described are completed within a single cell in accordance with the washing parameters that have been entered in the control panel along with PLC. The sequential application of spraying, dipping and ultrasonic effect in the same cell is very important particularly for enabling precise parts reach the targeted cleaning criteria at the highest level. These devices are used for parts, - Cleaning oil/Burr and contaminants on the surfaces, Some of the industries where RTS Series parts washing machines are used are as follows;
