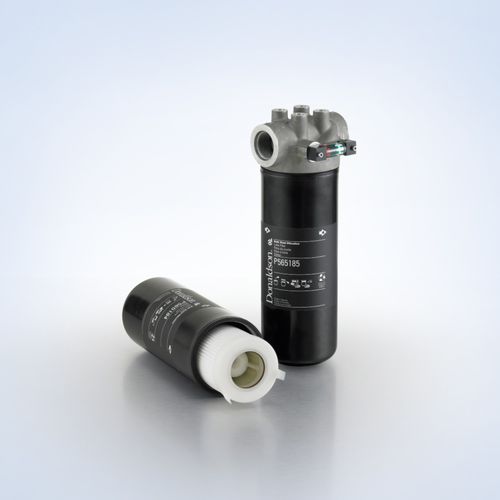

Oil filter hP

fuelcartridgefor high-pressure applications

Filtering oil prior to dispensing into equipment is critical to meet the ISO cleanliness specifications demanded by today’s OEMs. Donaldson Bulk hP filters provide high efficiency filtration in a single pass at working pressures up to 69 bar / 1000 psi. Service shops use high pressure pumps to force oil through long lengths of piping and hose reels prior to dispensing into equipment. Donaldson Bulk hP filters remove contaminants delivered in oil and picked up in storage or delivery lines during final transfer. They ensure the required ISO cleanliness level is met every time. Features Single pass filtration Handles working pressures up to 69 bar / 1000 psi Extended life filters with high dirt holding capacity Filter cans are recyclable and filter elements can be incinerated Compact design requires only 38 mm / 1.5 in. clearance for servicing Choice of filter heads with and without bypass Filter heads have indicator ports to adapt pressure gauges or sampling ports Benefits Removes dirt from oil before it is dispensed into equipment Ensures that oil consistently meets required ISO cleanliness requirement Easy and environmentally friendly disposal Filter head options meet specific application requirements Applications Lube shops Mobile service trucks Other higher pressure, single pass applications
