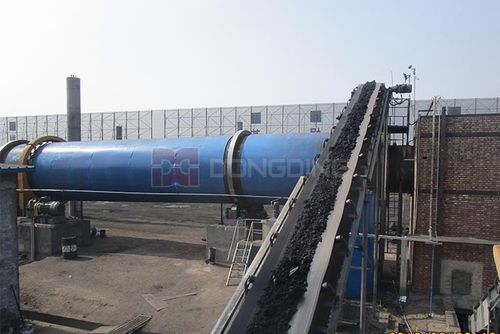

Rotary drum dryer DDHG1924

cylinderdehydrationrotary drum

Lignite generally has the disadvantages of high humidity (30%-50%), low ignition point and large carbon dioxide emissions. The direct combustion of the non-extraction lignite raw coal, will bring serious problems of high environmental pollution, and increase the cost of plant installation and operation. Besides, higher water content leads to transportation cost increasing. To solve the above problems of lignite properties, our technical personnels take full account of the characteristics of lignite, design the special internal structure of the cylinder, which further strengthens the anti-breakage of the unity block material, not only improving the thermal efficiency, but also effectively avoiding the excessive drying phenomenon of coal in the cylinder. Through the drying and dehydration treatment of lignite, the system can effectively improve the calorific index and storage performance of lignite, so that the indexes meet the requirements of commodity power coal, and have obvious economic, environmental and social benefits. System Firstly, wet material is crushed by the crushing machine, transported to the screw conveyor by the belt conveyor, then go into the rotary drum, after drying, most of the dry material will be discharged through the belt conveyor, the left material will go into the cyclone dust collector, where the dust will be collected, with the function of induced draft fan, the left material will discharged through the conveyor. Advantage 1 The hot flue gas directly contacts with the materials, sufficient heat exchange and high production capacity;
