Rotary drum dryer DDGT series

continuousstainless steel

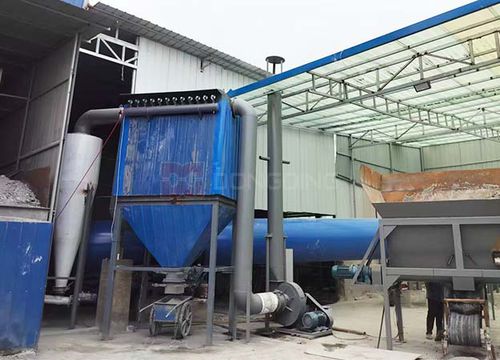

Nickel is a very important metal in stainless steel, nickel ore can replace expensive nickel plate by smelting nickel iron through red earth. Red soil nickel ore is particularly large in water content, generally contains about 35% of free water, 12% to 15% of crystalline water and other compounds of the burn loss. According to nickel ore' characteristics of high moisture, complex composition, stickiness and large-scale clumps, Dongding researches and manufactures the nickel ore rotary dryer system with capacity up to 400 tons per day. After treatment of the nickel ore, final moisture is about 7%, which achieves the next and large-scale processing requirements. System Single drum rotary dryer in which heated gas and a moist material is blown through a rotating drum. The drum has inwardly extending flights or vanes which deflect particles of the material back into the gas flow. A flight is oriented at an oblique angle to the longitudinal axis of the drum in order to make the material after drying move out from another side. 1. High mechanization degree, large processing capacity, continuous operating. 2. Running smoothly, easy to operate. 3. Low failure rate, low maintenance cost, low power consumption. 4. Wide application, for minerals, coal, gypsum, ore, etc
