Drying oven HJ series

heat treatmentagingchamber

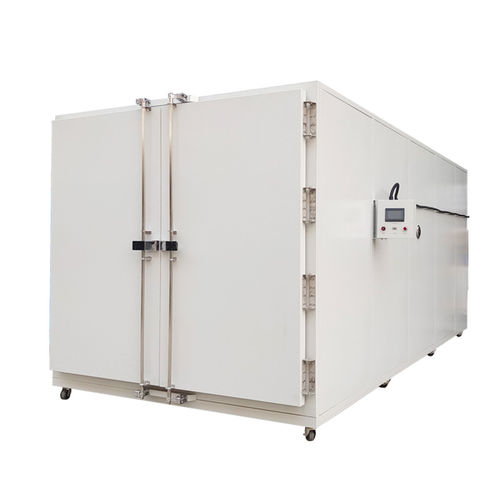

The trolley oven is also called the trolley oven. This equipment is equipped with a platform trolley made of channel steel welding, and the product is directly placed on the plane of the trolley well-shaped frame. There are 2 grooves on the bottom of the box for the trolley to enter. The product is heated by constant temperature hot air circulation in the trolley oven, and the temperature of each point of the product is uniform. Mainly used for transformer iron core, coil drying, painting electric cabinet and parts drying, rare earth drying, foundry sand drying, motor drying and other purposes. The trolley-type feeding and discharging method is adopted, which is suitable for automatic feeding and discharging of large quantities of workpieces. 1. Intelligent temperature control instrument, PID adjustment, button operation 2. Independent temperature measurement sensor, which is transmitted to the main control table to ensure the safety of equipment and drying materials 3. Using SSR solid state relay/contactor to control the heating of the electric heater 4. Constant temperature timer, which can be directly timed or timed to temperature, automatically cut off the heating and alarm when the time is up 5. Blast heating chain protection system, which can prevent local overheating of the heating element by opening the blast first and then heating 6. The phase sequence protector prevents the reverse connection of the phase sequence or the lack of phase from causing abnormal reverse operation of the fan
