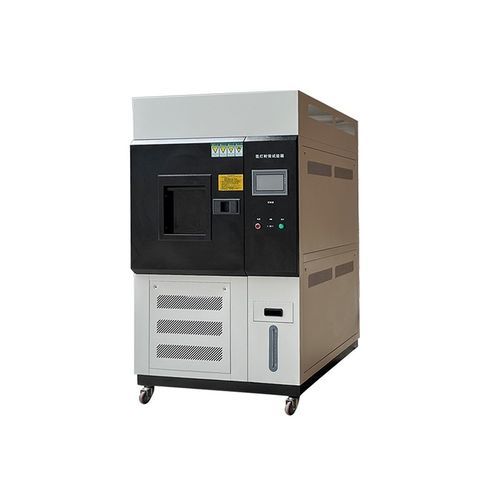

Xenon test chamber 800humiditytemperaturesolar simulation
Add to favorites
Compare this product
Characteristics
- Controlled parameter
- temperature, humidity
- Test type
- solar simulation
- Product applications
- for electrical equipment, electronic equipment, for avionics instruments
- Application domain
- for metrology laboratories
- Configuration
- on casters
- Light source
- xenon
- Temperature
Min.: 63 °C
(145 °F)Max.: 100 °C
(212 °F)- Power
6,500 W
- Interior length
800 mm, 1,000 mm
(31.5 in, 39.37 in)- Interior height
800 mm, 1,000 mm
(31.5 in, 39.37 in)- Interior depth
800 mm, 1,000 mm
(31.5 in, 39.37 in)- External length
1,450 mm, 1,650 mm
(57.1 in, 65 in)- External height
2,060 mm, 2,260 mm
(81.1 in, 88.98 in)- External depth
1,340 mm, 1,540 mm
(52.76 in, 60.63 in)
Description
The latest air-cooled technology xenon lamp solves the problem of high failure rate of the water-cooled xenon lamp cooling method. It is convenient for users to replace the lamp by themselves; maintenance is simple and convenient.
◆ Full spectrum xenon lamp.
◆ A variety of filter systems to choose from.
◆ Water spray function.
◆ Relative humidity control.
◆ Test chamber air temperature control system.
◆ Irregular-shaped flat product rack, easy to place products
◆ Xenon arc lamps imported from the United States.
◆Easy to install, easy to use and basically do not need routine maintenance.
◆ The service life of the xenon arc lamp depends on the level of irradiance used. Generally, the life of the lamp is 1600 hours. Lamp replacement is quick and easy, and long-lasting filters ensure the desired spectrum is maintained.
◆ The latest air-cooled technology xenon lamp solves the problem of high failure rate of the water-cooled xenon lamp cooling method. It is convenient for users to replace the lamp by themselves; maintenance is simple and convenient.
