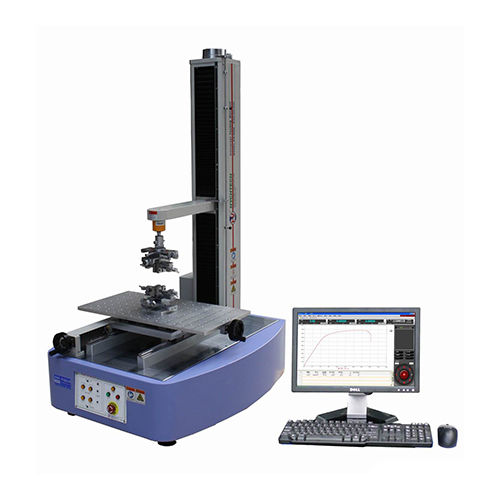

Universal testing machine RS-8010-XY
compressiontensileshearing

universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
Add to favorites
Compare this product


Characteristics

Test type
compression, universal, tensile, shearing, peel force
Operating mode
semi-automatic
Test material
for plastics, for rubber, for paper, fabric
Technology
servo-electric
Configuration
vertical

Description

This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength etc for semiproduct & finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile, etc, which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C), Physical inspection, Mechanics research and material development. Standard GB/T228-2002,GB/T14452-93,ASTM D638-03,ASTM D790-07,GB/T292,ASTM D3330-04,ASTM D1894-06. Specification Capacity(optional): 100N,200N,500N,1KN,2KN Unit(switchable): N,KN,Kgf,Lbf Dynamic system: PanasonicRAC servo motor+ShimpoRgear reducer+MitsubishiRsynchronous belt+TBIRBall screw Load cell accuracy: ±0.01%F.S Load resolution: 1/500,000 Level of the accuracy: ±0.5% Measurement accuracy: ±0.5%F.S Effective range: 0.2%~100%F.S Stroke resolution: 0.0001mm Stroke measurement accuracy: Less than ±0.5% of the display Deformation resolution: 0.0001mm Deromation measurement accuracy: Less than±0.5% of the display Stroke (exclude the grips): 1000mm Effective width: 400mm Test speed: 0.001-500mm/min Speed accuracy: ±0.5% Deformation measurement (purchasing additional): Large deformation:10-1000mm, Electronic extensometer:gauge length-25mm,deformation 25mm Fixtrue: Tensile,compression,peeing force X-Y axis mobile test platform: X axis:0-350mm Limiting Protection: Mechanical limit Overload Protection: Over maximum load 10%,machine protection Main unit dimension(WxDxH): W800*D1080*H1720mm Main unit weight: 175kg Power: AC220V 5A Noise: 5mm/min 55db(A)/500mm/min 68db(A)
