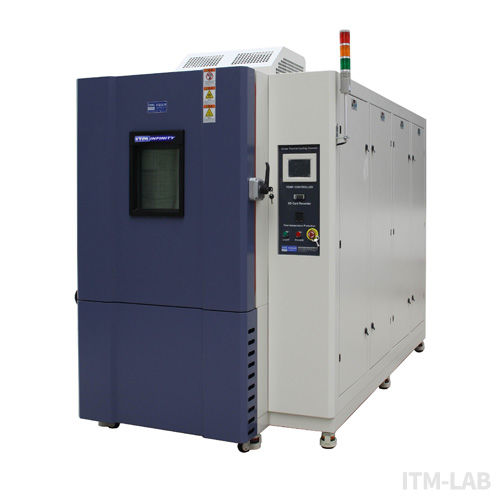

Climate chamber KTB series
temperaturehumidityfor the aeronautical industry

climate chamber
climate chamber
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Application domain
for the aeronautical industry
Product applications
for automobiles
Configuration
floor-standing
Other characteristics
energy-saving
Temperature

Min.: -70 °C
(-94 °F)

Max.: 150 °C
(302 °F)

Length

1,650 mm, 1,850 mm, 1,950 mm, 2,500 mm
(64.96 in, 72.83 in, 76.77 in, 98.43 in)

Width

1,300 mm, 1,400 mm, 1,500 mm, 1,600 mm
(51.2 in, 55.1 in, 59.1 in, 63 in)

Depth

1,100 mm, 1,400 mm, 1,600 mm
(43 in, 55 in, 63 in)

Description

This machine is to test heat endurance, cold endurance, dry endurance, wet endurance of various materials. It applies for quality control of electronic goods, electric appliance, measurement device, automobile, metal, chemical, plywood, aviation, medical and etc. We can customize all kinds of non-standard grips and fixtures. Please contact us for more details, thank you! Features • 1.Good appearance: Stainless steel is applied for the inner and outside material of the chamber, flat knob without reaction force; easy operation; • 2.It can be installed additional testing holes according to requirements; • 3.It adopt touching screen of original Japan OYO LCD. It can store 100 sets of programme (PTN) x 1000 steps, each programme can do 999 times or repeat unlimitedly, operation interface is English. It is with fault warning and protection function, RS-232 communication interface, attached PC software available for far control. • 4.Multi-wing ventilator inside the machine surpasses the traditional one exposing outside. It ventilates cyclically and strongly to make temperature evenly in the chamber. • 5.Observation window: tempered glass with defroster, heating device, energy-saving illumination. • 6.Hidden water giving system: pretty appearance and convenient watering operation.
