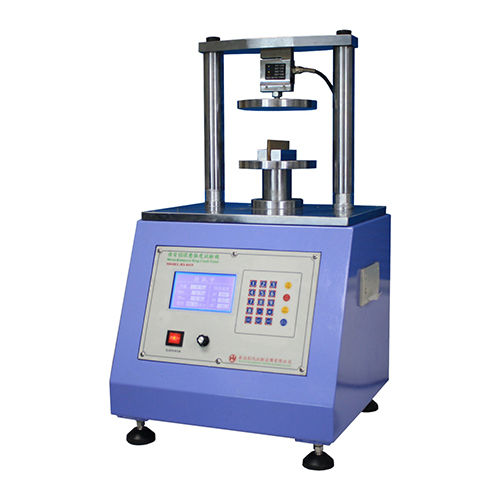

Ring crush (RCT) tester RS-8419

for paperdigital

Apply for ring pressure test on corrugated paper or leather paper below 1mm. With high precision roll ball rod to drive pressure plate working, do the pressing stably in right orbit, also the high precision conductor can get the pressure signal and show the test data on digital displayer. combined with the attachments to check the strength under horizontal pressure, flat pressure and adhesive pressure Specification Model: RS-8419 Capacity: 200kgf Resolution: 1/25,000 Accuracy: ±1% Plywood: 150mm Plywood space: 0~150mm Tester speed: 12.7mm/min Motor: 120w Main unit dimension (WxDxH): 400x390x730mm Weight: About 55kg Power supply: AC220V 3A or specified by user  Just press “test” button, then the tester can clamp thesample and load the force automatically • 1.after broken, will release the force and calculate the strength automatically, also can store and print the testing result; • 2.Computer can collect the test data, LCD digital display: measured value, Max. broken value, can identify the sample broken and release the force automatically, easy operation and high accuracy; • 3.After testing, can print the test result accordingly (printer can be optioned); • 4.Adopt precision quakeproof motor, high quality and durability; • 5.High resolution, 1/50000, top grade in this industrial; • 6.Unit can be switched: kgf/cm2, MPa, psi, Lbf/in2;
