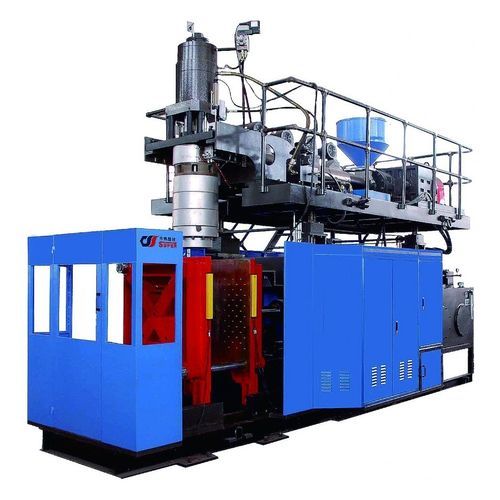

Extrusion blow molding machine SPB-50LS

for PPfor PEfor PVC

Suitable for medium&large size barrel, motorbike oil tank, large size toys, tool-bag, auto plastic parts, plastic volume in 15-50 L. the plastic material including PE、PP、PS、ABS etc. Features HMI Touch Screen, Incorporating with PLC system (Optional Siemens/B&R Control) for easy maintenance. Blowing Unit/ Die Head movement for changing mold easily, as option. Built with safety devices to provide maximum protection for the machine operator. High plasticizing capacity extrusion screw is designed to handle material variations. Plasticizing screw and barrel is precision machined from special nitrogen treated steel. Water cooling technology controls feed zone temperature. Chiller circulated hydraulically controlled blow-pin. When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application. Single Station Single/Double/Triple/Q.12 Head Horizontal Operated Clamping System Production Volume:2ml~50L Multi layers: Co-Extrusion 1-6 Layers Multi cavities: 1~12 cavities Specialize for the PE/PP/PETG/PVC/Nylon/Co-Extrusion material Special function: View Stripe Clamping system: Toggle/3 Tie Bar/4 Tie Bar Driven Model: Hybrid servo motor drive system/ High performance hydraulic power saving system/Close loop proportional valve Support Parison controller/Auto Deflashing/Auto Recycling/Auto material feeder/Remote trouble shooting funciton/IML(in mold labeling) Advantages Clamp sizes / quantity to match all requirements Easily configured for monolayer and multi-layer applications
