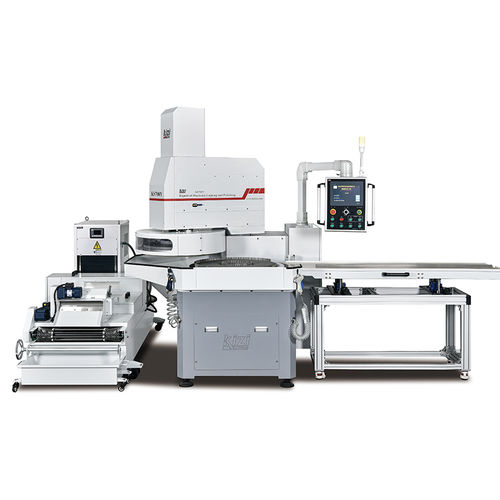

Double-sided precision lapping and grinding machine
●Can be installed and customized according to actual needs
●With pneumatic lift
●Frequency control
●Equipped with cooling filtration system
●Adopt Japanese "NSK"/Germany "FAG" high-precision high-speed bearings, SMC" pneumatic components, Switzerland "ABB", PLC program control system.
●Intelligent automatic thickness detection system, the best precision resolution is 0.001um
●In response to the processing needs of different materials, diamond grinding discs with different formulas are specially developed;
●The best processingparallelism:1un, The best processing flatness: 1un, The best processing roughness: Ra0.2um
application:
Material: Carbide, stainless steel, copper, aluminum alloy, hardware parts, optical crystal, sapphire glass, LED sapphire substrate, light guide plate mold core, piezoelectric ceramic sheet, alumina ceramic, plastic sheet, silicon wafer, and other metals and non-metals
●Industry: hydraulic, auto parts, optical crystal, communication, CNC blade
●Shape: Flat
Technical parameter:
●Place of Origin: CN; GUA
●Brand Name: KIZI
●Mold: KS700Y
●Lapping Plate OD:700mm
●Max. workpiece Grinding Diameter:200mm
●Work station number: 6
●Rotate speed: 0-106
●Condition: New
●After-sales Service Provided: Engineers available to service machinery overseas
●Type: Surface Lapping Machine
●Voltage:380V
●Certification: ISO9001
●Power(W):13.6kw
●Dimension(L*W*H):3350*1480*2360mm
●Weight:2500kg
