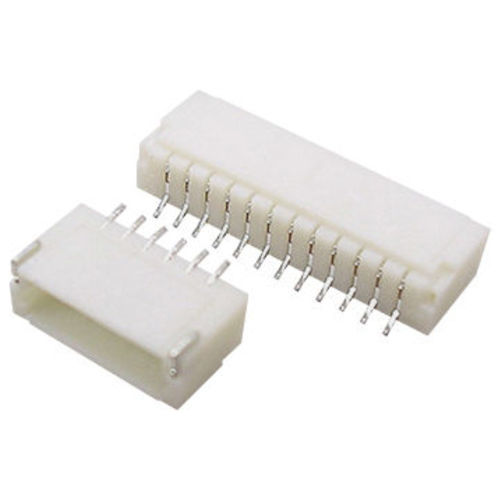

electrical power supply connector / SMT / wire-to-board / rectangular
L101-13

{{requestButtons}}

Characteristics

  • Type:

    electrical power supply

  • Format:

    SMT, wire-to-board

  • Shape:

    rectangular

  • Electrical characteristics:

    AC/DC

  • Material:

    brass

  • Other characteristics:

    horizontal

  • Product applications:

    terminal, wafer, housing

  • Current:

    1 A

  • Voltage:

    100 V

  • Pitch:

    1 mm

Description

PH1.0mm Wafer, Single Row, Horizontal SMT Type Wafer ConnectorsSpecifications:

Rating current: 1.0AMP AC/DC
Rated voltage: 100V AC/DC
Contact resistance: 20mΩ max
Withstand voltage: 250V AC/minute
Insulation resistance: 100mΩ min
Operation temperature: -25°C to + 85°C
Contact material: Brass
Contact plating: Au or Sn over Ni
Insulator material: PA9T+30%GF (UL94V-0)
