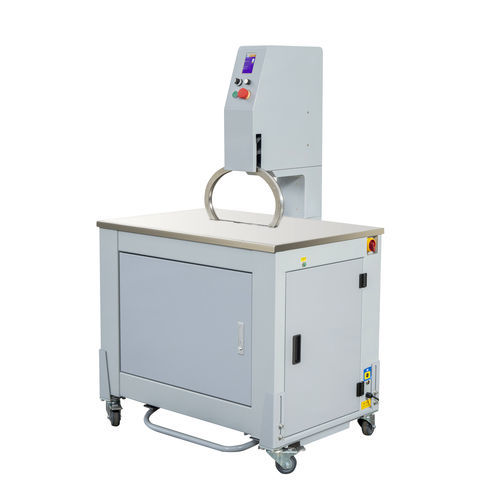

Automatic strapping machine Q8K-R-W600
manualfor coilsfor polypropylene straps

automatic strapping machine
automatic strapping machine
Add to favorites
Compare this product


Characteristics

Type
automatic, manual
Product applications
for coils
Type of strap
for polypropylene straps
Power supply
220V single phase
Other characteristics
vertical
Rate

Min.: 40 p/min

Max.: 45 p/min

Package height

90 mm
(4 in)

Strap width

Min.: 9 mm
(0.4 in)

Max.: 12 mm
(0.5 in)

Power

500 W
(0.68 hp)

Description

Features • - High speed automatic strapping machine can make 1.5 seconds/strap • - Manual and auto mode operation • - Loop ejecting function and refeed function • - Rigid structure design • - Built for 24 hours continuous operation • - PCB+LCD screen: visualize temperature and banding tension • - Banding count function • - Electronic double banding tension adjustment • - Easy strap loading and unloading The Q8 series automatic strapping machine is suitable for the strapping and packing of conventional objects and all kinds of cartons. The biggest feature of this series of machines is that it can use 0.35mm thick PP tape, which saves users a lot of consumable costs. Model No:Q8K-R-W600 Applicable Material:PP Strapping Band Strapping Size:D≤550mm;d≥100mm;H≤90mm;R≥100mm Strapping Tension:2-40kg Adjustable Table Height:820~900mm Adjustable Strapping Roll Core:200mm Strapping Roll Width:190mm Sealing Method:Heat Sealing Power Supply:220V 50-60Hz Power:500W Dimension:1005x770x1510mm Applicable:coils or cables strapping.
