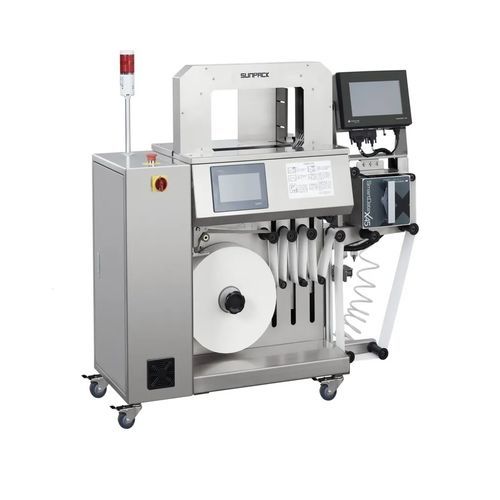

Automatic banding machine WK06-75C-MRQ

OPP filmwith printerfor the pharmaceutical industry

Features *Schneider PLC and Touch screen *With Markem Smartdate X45 printer *304 SS body for food industry *50mm/75mm/100mm/150mm wide band *Min 40mic OPP film *No Pre-Heating time *Applicable for both paper and band OPP film *Jumbo roller dispenser to load 500-1200 meters roll *Schneider Servo Motor *Persistent heater temperature *Application Industry: Food industry, Bakery Industry, Confectionary Industry, Pharmaceutical industry, Textile industry Specification Model-- - - WK06-75C-MRQ - Applicable Material-- - OPP film or Paper band - Material Specification-- - - Width: 75mm Thickness: 40-130 mic, Length: 500-1200meters Core: 76mm - Arch Size-- 370*200 mm Banding Size-- - - Min:50*10mm Max: 360*200mm Table Height-- 878-900mm - Power Supply-- - 220V 50hz 1phase or 110V 60hz 1phase - Air Supply - -- - 0.6-0.7Mpa Power Rate-- - - 1250W Control System-- Schneider PLC+Touch screen Banding Speed-- 27 bands/Minute Banding Tension-- - 5-40N - Welding Method-- Heat Sealing NW-- - 145KG Machine Dimension-- L 1253 x W 502 x H 1205mm Markem SmartDate X45 thermal printer Printing Area-- - 32*40mm Driven type-- - Pneumatic Printing Speed-- - 50 to 600 mm/s Resolution-- - 8 dots/mm Voltage-- - 90-260V Software-- - CoLOS Printing Color-- - Black Printing Content--QR code, Bar Code, Black pattern Image, Date, Numbers, Characters, Ink Ribbon-- - L 700 *W22 or 33MM
