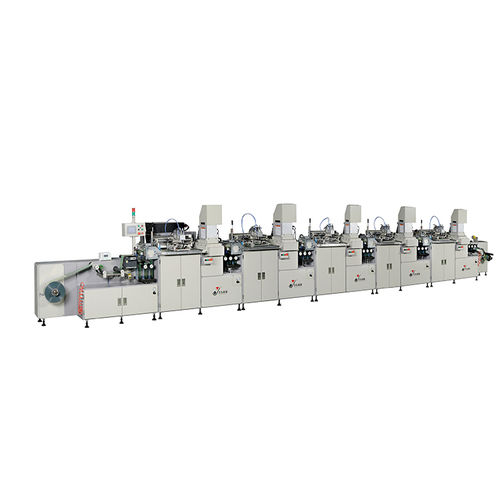

Automatic screen printer YD-SPA/F300R-5C

5-colorfor labelsmodular

◆ Print on laminates & labels ◆ Synchronous hot stamping function ◆ Synchronous cutting function ◆ Customizable as special products YD-SPA/F300R-5C Five Color Automatic Roll-to-Roll Screen Printing Machine & UV Curing System ◇  This machine is specially designed to print kinds of roll material such as film switch, flexible circuit, heat transfer film, adhesive tape with kinds of material such as PVC, PET, PP, PC etc.. ◇  Each modular machine is independent and easy to install the hot stamping device to realize the combination of offset printing, screen printing and hot stamping technology. ◇  Each modular machine synchronous drive supported by Servo & Sensor registration system，automatic Guiding System and Tension Control System to overcome the inaccurate registration between colors, in this way to ensure the printing quality. ◇  This machine is controlled by famous brand PLC and Touch screen fromJapanand supported by internationally reputed components to drive to ensure the machine operation simple and running stable. . ◇  Fusion system fromU.S.A.to guarantee the excellent ink curing effect and eliminate the ink fall. ◇  Equipped with kinds of monitor system to protect the machine system and ensure the machine running security. ◇  We can customize machine according to the special products. Maximum Width of the Roll Goods 300mm Maximum Screen Frame Size（L×W） 350mm×350mm Maximum Printing Area（L×W） 320mm×250mm Maximum Running Speed 75cycle/min Power Consumption 46.4KW Compressed Air Pressure Requirement 6-8bar Power Requirement 380V 3Phase 50Hz Machine Dimension（L×W×H） 10500mm×700mm×1700mm Total Weight 5100kg
