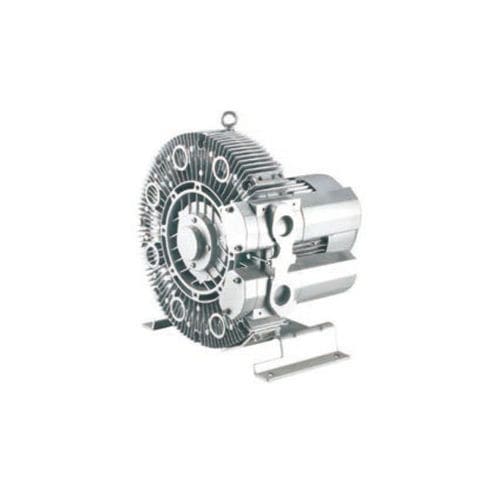

Air blower 4HB 410 H16turbineimpellerside-channel
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel, impeller, turbine
- Number of stages
- single-stage
- Applications
- bearing, rotor
- Flow
Max.: 105 m³/h
(3,708.04 ft³/h)Min.: 87 m³/h
(3,072.376 ft³/h)- Operating pressure
Max.: 380 mbar
(5.511 psi)Min.: -340 mbar
(-4.931 psi)- Nominal power
1.1 kW, 1.3 kW
(1.496 hp, 1.768 hp)- Sound level
58 dB, 62 dB
- Weight
23 kg
(50.71 lb)
Description
The impeller of 2HB series was directly installed to the rotor, compress without contact. The bearing was out of turbine to make sure the stability.
Air gets in through inlet 1, then enters side channel 2, impeller will push the air under high speed. Meanwhile, centrifugalization makes the air speed outward and pressure rises. Air power increase under rotating, and the pressure rises further. At last, air gets out from outlet 4.
