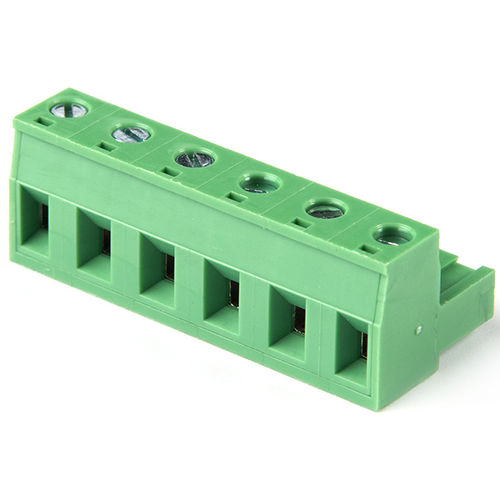

Plug-in terminal block F75-5-7.5screw connection
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Current
16 A
- Nominal voltage
300 V
Description
pluggable system,2~24P,7.62mm female,without flanges,
Compliant with UL, TUV standards and RoHS Directive-compliant,
Body: German brand NY66-UL94V-0
Clamp: copper alloy
Screw: M3.0, steel galvanized with Cr3+ plated
Wire guard: copper alloy
Voltage rating: 300V
Current rating: 16A way (maximum)
Wire range: 12 to 26AWG
Torque: 5.0kfg/cm
small orders are acceptable
Catalogs
No catalogs are available for this product.
