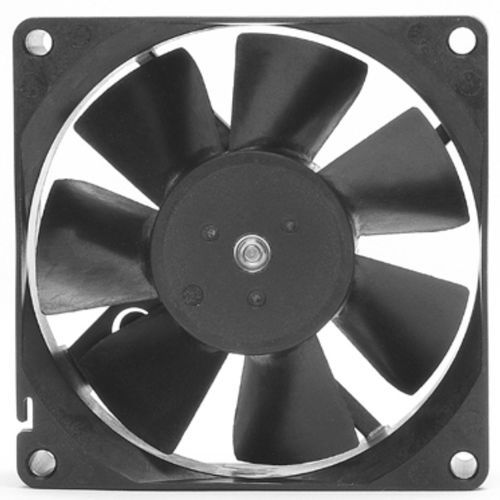

Electronic fan G8025-Saxial12 Vdc24 Vdc
Add to favorites
Compare this product
Characteristics
- Installation
- for electronics
- Configuration
- axial
- Supply voltage
- 24 Vdc, 12 Vdc
- Drive mechanism
- electrically-powered
- Air flow
Min.: 0.73 m³/min
(25.78 ft³/min)Max.: 1.47 m³/min
(51.913 ft³/min)- Rotational speed
Min.: 2,000 rpm
(12,566 rad.min-1)Max.: 4,000 rpm
(25,133 rad.min-1)- Noise level
Min.: 22 dB
Max.: 39 dB
Description
- 80mm square x 25mm frame sizes
- Thermal protection type
- Rib type housing
- UL/cUL/TUV agency listed
- RoHs Compliance
- Weight 84g
- Operating Temperature -10℃~70℃
- Ball bearings or Sleeve bearing structure
- Custom added-value options(i.e. special leadwires, connector installation and etc.)
- Options : Tachometer output signal or Locked rotor output signal
PWM duty control
