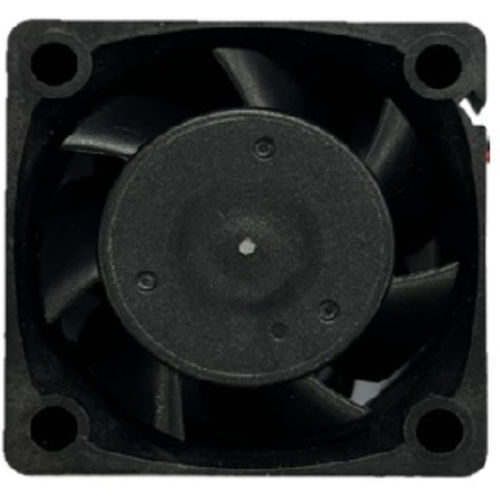

Electronic fan H4028axial12 Vdc24 Vdc
Add to favorites
Compare this product
Characteristics
- Installation
- for electronics
- Configuration
- axial
- Supply voltage
- 24 Vdc, 12 Vdc
- Drive mechanism
- electrically-powered
- Other characteristics
- thermally-controlled
- Air flow
Min.: 0.29 m³/min
(10.241 ft³/min)Max.: 0.57 m³/min
(20.129 ft³/min)- Rotational speed
Min.: 5,000 rpm
(31,416 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)- Noise level
Min.: 36 dB
Max.: 60 dB
Description
- 40mm square x 28mm frame sizes - - - - -
- Thermal/Lock protection type - - - - -
- Rib type housing - - - - - - -
- RoHS Compliance - - - - - - -
- Weight 5g - - - - - - - -
- Operating Temperature -10℃~70℃ - - - - -
- Ball bearings structure - - - - - -
- Custom added-value options
(i.e. special leadwires, connector installation and ec.)
- Options : - Tachometer output signal or Locked rotor output signal - -
- PWM Duty Control
