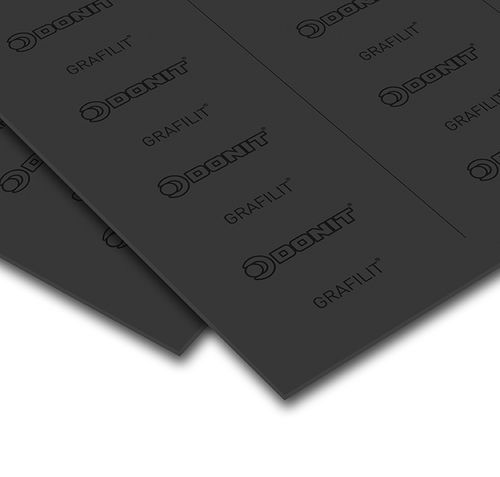

Expanded graphite gasket sheet GRAFILIT® SFcarbonfor chemical applicationsfor the petrochemical industry
Add to favorites
Compare this product
Characteristics
- Material
- expanded graphite, carbon
- Product applications
- for chemical applications, for the petrochemical industry, gas, oxygen, for pumps, for compressors, bar, sheet
- Other characteristics
- asbestos-free, high-temperature, chemical-resistant
- Temperature limit
Min.: -200 °C
(-328 °F)Max.: 700 °C
(1,292 °F)- Pressure limit
80 bar
(1,160.3 psi)
Description
GRAFILIT® SF is an expanded graphite-based material that has an excellent chemical and thermal resistance. Its high creep resistance and high compressibility make it suitable for highly demanding conditions in the chemical and petrochemical industries, gas supply, compressors, and pumps.
Composition
Expanded natural graphite (>99% carbon content)
APPROVALS AND COMPLIANCES
BAM (oxygen)
DNV GL
DVGW DIN 30653 (5 bars)
DVGW DIN 3535-6
SHEET DIMENSIONS
Sheet size (mm): 1000 x 1000 | 1500 x 1500
Thickness (mm): 0.5 | 1.0 | 1.5 | 2.0 | 3.0
Catalogs
GRAFILIT SF Gasket Sheet
2 Pages
