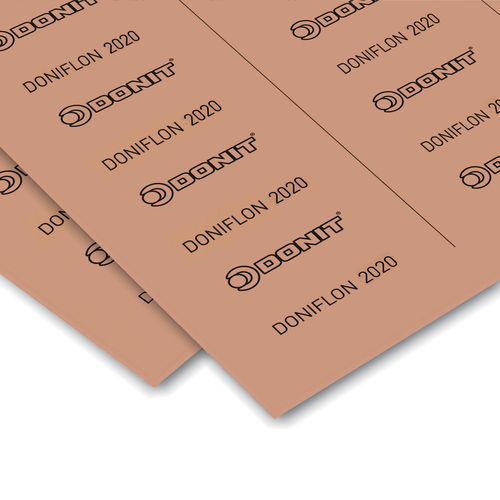

PTFE gasket sheet DONIFLON® 2020
foodfor the pharmaceutical industryoxygen

PTFE gasket sheet
PTFE gasket sheet
PTFE gasket sheet
Add to favorites
Compare this product


Characteristics

Material
PTFE
Product applications
for the food industry, oxygen, for the pharmaceutical industry, food, sheet
Other characteristics
asbestos-free, chemical-resistant
Temperature limit

Min.: -200 °C
(-328 °F)

Max.: 260 °C
(500 °F)

Pressure limit

80 bar
(1,160.3 psi)

Description

DONIFLON® 2020 is structurally enhanced PTFE gasket sheet filled with silica. It has outstanding chemical resistance to various media, same as DONIFLON® 900E; especially recommended for inorganic acids in all concentrations, except hydrofluoric acid. This material has enhanced creep performance compared to plain PTFE material. It is recommended for pharmaceutical and food industries as well as LNG & cryogenic applications. COMPOSITION PTFE, silica APPROVALS AND COMPLIANCES BAM (oxygen) EN 12308 (cryogenic) EU No. 10/2011 FDA SHEET DIMENSIONS Size (mm): 1500 x 1500 Thickness (mm): 1.5 | 2.0 | 3.0
