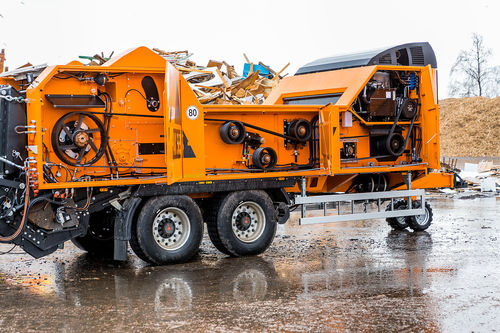

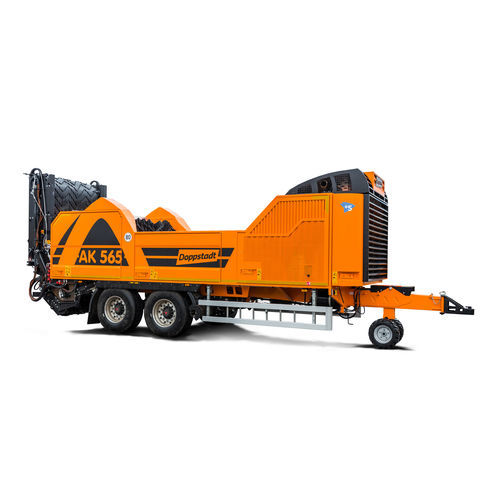

Secondary shredder AK 565

single shaftfor woodsolid & bulk waste

The powerful mobile shredder AK 565 is flexible and universally usable and is distinguished by a lowerable rear discharge conveyor, offering improved ease of maintenance. The new engine also complies the latest EU Stage V emissions standards. Maximum throughput is one of the distinguishing features of this machine. The material is moved by a scraper floor and the infeed roller, which are controlled using an electrohydraulic unit in line with the system’s loading. By doing so, engine output is optimally utilized continually. Scraper floor and infeed roller are powered separately, which in turn improves material intake and equalization. Another factor ensuring the AK 565’s ability to deliver outstanding performance is the modified main drive, which not only fulfills the latest EU Stage V emissions standards but also provides at the same time a consistently higher torque (plus 140 Nm) over its predecessor. The heart of the machine is its heavy belt-driven flail drum, which rotates 1,000 rpm and is equipped as standard with high-quality “Plus” flail tips. Doppstadt’s AK 565 can be used universally for a very broad range of materials, e.g. to shred green waste, garden and park waste, bio-waste, pre-shredded tree trunks, roots, waste wood and wood pallets. For particular applications, our AK fine shredders can be optimally combined with other Doppstadt products, e.g. with pre-shredders or screening machines. The lowerable rear conveyor, the expanded diagnostic capability and the ability to easily replace parts ensure that it is very easy to service and maintain the machine.
