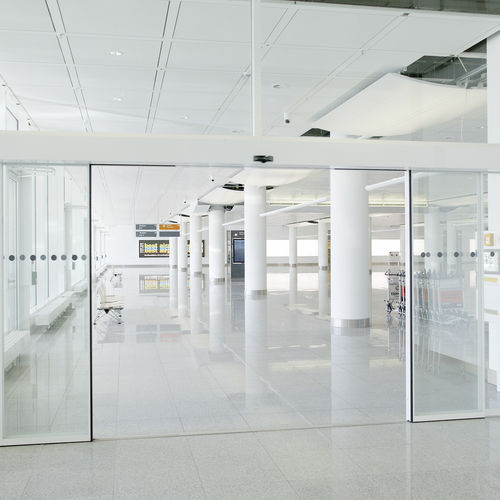

The SST FLEX breakout sliding door looks like a standard sliding door with a fine-frame profile system (FLEX). In the event of an emergency, however, users can open the door panels and sidelights by hand (breakout function).
The escape route width almost to amounts the full door width for a generous through passage.
Breakout hinges create full door width for through passage
Approved for use in emergency exits and escape routes
In automatic mode, same function as a standard sliding door
During summer, the large opening can be used to ventilate the building
For internal and external doorset applications
Suitable for ventilating the building
During summer, the large opening can be used to ventilate the building. The glazing is made of 10 mm safety glass and protected by slender fine-frame profiles.
Approved for application in emergency exits and escape routes
The profile system is tested for a minimum service life of 1 million cycles and approved for application in emergency exits and escape routes according to UNE EN 16.005
The glazing is made of 10 mm safety glass and protected by slender fine-frame profiles.
Fields of application
Exterior doors or interior doors
Showrooms (car dealers or similar)
Maximum door dimensions
(Door panel weight and basic technical conditions can be critical)
Maximum system width: 5540 mm
Maximum clear passage width: 2000 mm
Maximum clear passage height: 2500 mm
Floor-integrated guide tracks
Combined electromechanical locking device
