Level control system MAX5

temperaturedigitalchemical process

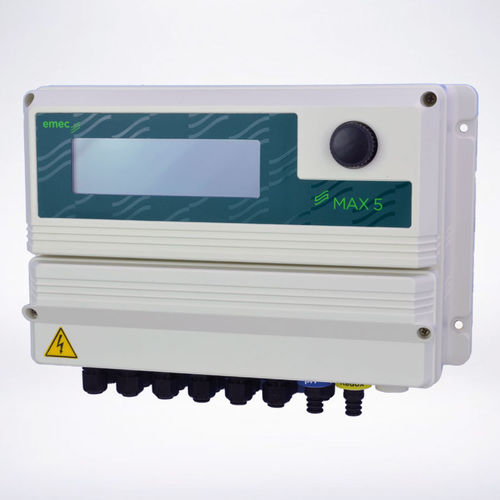

MAX5 CONTROL INSTRUMENT MAX5 control instrument is a controller system that meets a wide range of applications. It is a multiple digital controller system for managing up to 5 channels that can be programmed to control: pH, ORP, chlorine (total, free and combined), chlorine dioxide, hydrogen peroxide, ozone, peracetic acid, turbidity, conductivity, dissolved oxygen and temperature. MAX5 versatility enables different programming solutions: each channel can be programmed on specific user requirement. All information are provided through a widescreen LCD display. Instrument has: 6 setpoints relais output (on/off, PID or PWM) renamable, 6 impulsive proportional output renamable, 1 probe cleaning output, 5 level tank input renamable, 5 timer for flocculant/algicide dosing renamable, water meter input for water restore, temperature probe input, alarm output, easy control by encoder wheel, ERMES web communication, local & remote control, multiple probe readings can be viewed, probe readout menu and check up, LOG menu for enable/disable log on output, permanent data storage with system log, stand-by input, alarms, totalizer for instant flow rate when connected to a meter and 6 mA output (optional). FEATURES 5 PROGRAMMABLE CHANNELS REMOTE CONTROL ETHERNET or 2G/3G option configurations are remotely manageable through portal: www.ermes-server. com. SOFTWARE Instrument software in English language. French and german available upon request CUSTOMIZATIONS Instruments are customizable with client logo on frontal panel PERMANENT DATA STORAGE (WITHOUT BATTERY) with system log on display DISPLAY Multiple probe readings alarms and connection status can be viewed on display
