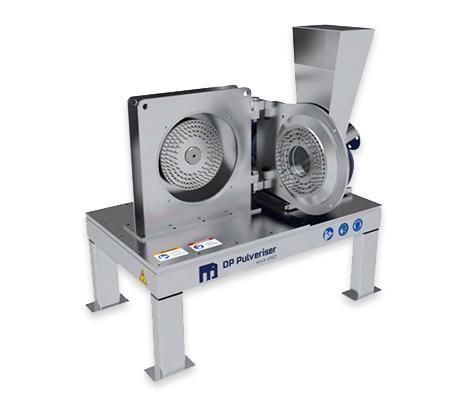

Powder mill

foodfor sugarfor spices

Product overview
DP Pulverizer pin mills are high-speed, impact-based grinding machines designed for continuous industrial processing of dry, free-flowing materials to produce fine to medium powders. They are configurable as single-rotor, counter-rotating or cryogenic systems to suit applications across food, pharmaceuticals, chemicals, minerals, pigments, cosmetics, nutraceuticals and battery materials.

How it works

• Material is fed into the milling chamber via controlled feeders (screw feeders, rotary valves, gravity feed or loss-in-weight feeders).
• Particles are accelerated by centrifugal forces through a rotating field of hardened pins (single-rotor or counter-rotating discs).
• Size reduction occurs by repeated high-speed impacts between rotating pins, stationary pins or opposing pin discs, plus particle-to-particle collisions.
• Internal airflow assists product transport and discharge; optional classifiers or cyclones enable tighter size control.

Typical particle size range

• Common selection range: approximately 50 µm to 500 µm depending on material and configuration.
• Pin mills deliver uniform fine powders but are generally not intended for ultra-fine micronization (< ~20–30 µm) without additional classification.

Configurations and options

• Single-rotor (one rotating disc + stationary disc) — simpler design and lower power demand.
• Counter-rotating (two discs rotating oppositely) — higher relative impact velocity, finer product and increased throughput.
• Cryogenic pin milling or cooling jackets for heat-sensitive or elastic materials.
• Optional internal/external air classifiers, cyclones, bag/cartridge filters, dust collection and closed-loop recirculation.
• Variable frequency drives (VFD) and PLC controls for rotor speed, feed rate and process monitoring.

Materials commonly processed

• Brittle and semi-brittle materials: sugar, sweeteners, spices, starches, flours, salts, pigments, dyes, chemicals and specialty powders.
• Minerals, clays, soft crystalline materials and fillers.
• Food additives, nutraceuticals, APIs, herbal extracts and cosmetic-grade minerals.
• Battery materials such as carbon black and conductive powders.

Industries & applications

• Food processing (sugar, spices, grains).
• Nutraceuticals & supplements.
• Pharmaceuticals (where mechanical impact is appropriate and contamination is controlled).
• Chemicals & polymers.
• Minerals, pigments, cosmetics, battery & energy materials.

Main components

• Rotor assembly (pin discs) with precisely spaced, hardened/wear-resistant pins.
• Replaceable pins with application-specific geometry and spacing.
• Stationary disc or counter-rotating disc(s) per configuration.
• Milling chamber/housing engineered for smooth radial flow and minimized dead zones.
• Feed inlet systems: screw feeders, rotary airlocks or loss-in-weight feeders.
• Drive system: high-speed motor, direct or belt drive, VFD for speed control.
• Internal airflow system to remove heat and convey fines out of the chamber.
• Product discharge connected to cyclones, filters or pneumatic conveying.

Advantages

• Efficient grinding with controllable impact energy and adjustable operating parameters.
• Excellent particle size uniformity and repeatability within targeted ranges.
• Compact footprint and industrial-grade construction suitable for continuous operation.
• Lower operating cost than jet mills for many target sizes (no compressed gas required).
• Flexible configurations to match diverse application needs (single-rotor, counter-rotating, cryogenic).
• Accessible maintenance and straightforward integration into process systems.

Disadvantages & limits

• Not ideal for ultra-fine micronization (< ~20–30 µm) without additional classification.
• Mechanical impact generates heat — cooling or cryogenic operation may be required for heat-sensitive materials.
• Less effective for highly elastic, rubbery or fibrous materials unless cryogenic methods are used.
• Wear of pins and internal parts when processing abrasive materials; periodic maintenance and parts replacement are required.
• Performance sensitive to feed characteristics — best with dry, free-flowing, consistent feeds.
• Potential for trace contamination from wear components where ultra-high purity is required; material selection and design mitigation are necessary.

System integration

• Pin mills are typically integrated into complete powder-processing systems with feeding/dosing, pre-conditioning, air classification, dust collection, pneumatic conveying and PLC control.
• When engineered as part of a system, pin mills enable scalable continuous processing with predictable throughput and product recovery.

Applications where pin mills are the right choice

• When fine, uniform particle size is required but ultra-fine micronization is not.
• When operational simplicity, energy efficiency and lower operating cost are priorities.
• When industrial reliability and straightforward maintenance are important for production-scale systems.

Technical specifications

• Function: High-speed mechanical impact grinding for fine to medium powders.
• Typical particle size range: ~50 µm to 500 µm (application dependent).
• Configurations: Single-rotor, Counter-rotating, Cryogenic-enabled.
• Drive: High-speed electric motor; VFD available for speed control.
• Feed methods: Screw feeder, rotary valve, gravity feed, loss-in-weight feeders.
• Air management: Internal/external induced airflow; cooling jackets and cryogenic operation as options.
• Optional components: Air classifiers, cyclones, bag/cartridge filters, dust collectors, pneumatic conveying, PLC controls.
• Construction: Materials and pin materials selected for wear resistance and regulatory/cleanliness requirements.
• Operation: Suitable for continuous processing and system integration; upstream conditioning recommended for sticky or moist feeds.
