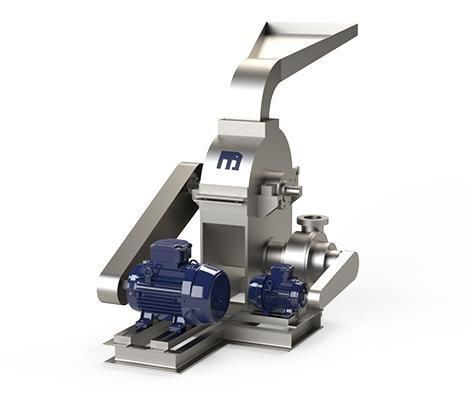

Coal grinding mill DP HM series

for woodfor powdersfor limestone

Overview
DP Pulverizer hammer mills are industrial size‑reduction machines designed for continuous coarse-to-medium grinding. They reduce material by high‑speed impact of rotating hammers and control final particle size with perforated screens or grates. Suitable for high-throughput processing in agriculture, biomass, food, chemical, pharmaceutical and recycling sectors.

Key Benefits

• Continuous industrial operation for high throughput
• Adaptable to a wide range of feedstocks: grains, biomass, wood, minerals, recyclables, chemicals
• Adjustable product size via screen selection, rotor speed and hammer configuration
• Proven, simple mechanical principle with accessible wear parts (hammers, screens, liners)
• Easy integration with feeders, cyclones, dust collectors and conveying systems

Industries & Applications

• Agriculture: grain and feed grinding
• Biomass & Wood: chips, bark, agricultural residues
• Food Processing: spices, sugar, salt, starches
• Pharmaceuticals & Nutraceuticals: coarse grinding of botanicals
• Chemical: resins, fertilizers and bulk chemicals
• Mining & Minerals: soft rock, coal, limestone, gypsum
• Recycling: plastics, paper, rubber, e‑waste size reduction

What is a Hammer Mill?
Hammer mills are mechanical size‑reduction devices where a rotor fitted with hammers impacts material, forcing it through a screen to achieve the desired top cut. They are typically used where coarse-to-medium particle sizes (~0.5 mm to several mm) are acceptable and where throughput and robustness are priorities.

How It Works (Process Steps)

• Feed: controlled input via gravity inlet, screw feeder or rotary airlock
• Rotor & hammers: high‑speed rotation generates impact energy
• Impact & fracture: material is broken by hammer strikes and secondary impacts on liners or breaker plates
• Size control: particles exit only after passing the selected screen or grate
• Discharge & airflow: product exits to discharge outlet; induced airflow can assist conveying and cooling
• Continuous operation: designed for stable production with options for speed control and monitoring

Main Components

• Rotor assembly: balanced shaft and discs for low vibration
• Hammers: swinging or fixed, reversible/replaceable, wear‑resistant
• Hammer pins & spacers: secure hammer positioning
• Milling chamber & liners: wear protection and flow control
• Breaker plates / liners: secondary impact surfaces
• Screen / grate assembly: interchangeable perforated screens
• Feed inlet: gravity, screw feeder or rotary airlock options
• Discharge outlet: connection to cyclones, dust collectors or conveyors
• Drive system: electric motor, direct or belt drive; optional VFD
• Airflow & dust control: fans and dust collection provisions
• Control & monitoring: rotor speed, motor load, temperature and vibration monitoring

Advantages

• High throughput with straightforward operation
• Versatile on heterogeneous and fibrous materials
• Lower capital/operating cost for coarse-to-medium grinding compared with some fine mills
• Accessible maintenance and replaceable wear parts
• Scalable from pilot to full production

Disadvantages / Limitations

• Not suited for ultra‑fine or micronization below ~300–500 µm
• Mechanical impact generates heat; cooling may be required for heat‑sensitive products
• Higher wear on abrasive feeds — requires more frequent part replacement
• Noise and vibration must be managed via correct mounting and balancing
• Broader particle size distribution than classified or jet mills; may need downstream classification
• Challenges with high‑moisture or sticky materials (risk of clogging)
• Potential trace contamination unless designed for high‑purity applications

Brochure / Documentation
Product brochure and DP Pulverizer general documentation are available for detailed specifications and system integration guidance.

Technical Specifications

• Typical particle size range: ~0.5 mm to several millimeters (dependent on screen and rotor speed)
• Size control: interchangeable screens/grates, rotor speed (VFD), hammer configuration
• Operation mode: continuous, high‑throughput industrial use
• Materials processed: grains, biomass, wood, chemicals, minerals, recyclables, botanical materials
• Key performance variables: rotor speed, hammer design, screen open area, feed rate and material properties
• Heat management: airflow through chamber; optional cooling or cryogenic systems
• Integration: feeders, conveyors, cyclones, dust collectors, classifiers and PLC automation
• Maintenance: easy access to hammers and screens; reversible/replaceable wear parts; balanced rotors
