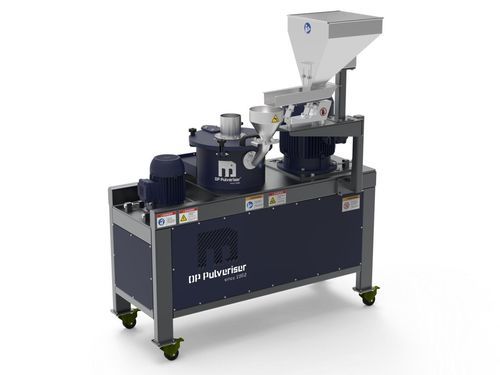

Powder mill

foodimpactair classifier

Overview
DP Pulverizer Air Classifier Mills deliver precise, screen-free particle separation using engineered airflow and dynamic classification. These integrated systems combine high-speed impact milling and continuous air classification in a single machine to produce tight particle size control, consistent product quality, and reduced over-grinding.

Key Benefits

• Precision particle size control via an adjustable dynamic classifier (no fixed screens required)
• Narrow particle size distribution and improved top-cut control
• Higher usable yield and reduced fines because only oversize is reprocessed
• Improved heat management due to continuous airflow and short residence time
• Continuous, scalable operation from pilot to production

How It Works (high level)

• Controlled feeding into a high-speed grinding rotor (screw feeders, rotary valves, loss-in-weight feeders commonly used)
• High-speed impact milling by rotor elements (hammers, pins, blades) producing size reduction by rotor-to-particle and particle-to-particle impacts and secondary impact with liners
• Engineered airflow lifts particles toward an integrated dynamic classifier
• The rotating classifier wheel creates centrifugal rejection of coarse particles and allows fines to pass and exit the mill
• Oversized particles are continuously recirculated internally until they meet the cut point
• Product is discharged with the airflow to downstream collection (cyclone, bag/cartridge filters); clean air is exhausted or recirculated

Typical Particle Size Range
Air classifier mills are commonly selected for target particle size ranges of approximately ~10 microns to 200 microns depending on material and configuration.

Materials Commonly Processed

• Active pharmaceutical ingredients (APIs)
• Nutraceuticals and functional ingredients
• Food additives, sugars, starches, spices
• Pigments, coatings and specialty chemicals
• Minerals, fillers, ceramics
• Battery and advanced material powders (metal oxides, conductive powders)

Industries & Applications

• Pharmaceuticals
• Nutraceuticals
• Food & beverage
• Chemical processing
• Minerals & ceramics
• Battery & electronics
• Aerospace (powder control for additive manufacturing)

Main Components & Functional Elements

• High-speed grinding rotor (impact elements/rotor geometry matched to material)
• Dynamic classifier wheel (adjustable speed to set cut point)
• Classifier housing / separation zone (geometry to minimize turbulence and sharpen cut)
• Milling chamber and internal liners (replaceable wear components)
• Airflow system: inlets/outlets, induced draft fans, internal flow channels
• Feed inlet and precision feeding systems (screw feeders, rotary valves, loss-in-weight)
• Independent drive systems (rotor and classifier) often with VFDs
• PLC-based control and automation for rotor speed, classifier speed, airflow and feed rate
• Downstream product collection (cyclone, bag/cartridge filters) and dust control

Advantages of DP Pulverizer Air Classifiers

• Adjustable cut point without mechanical screen changes (classifier speed and airflow control)
• Integrated grinding and classification reduces footprint and system complexity relative to multi-machine solutions
• Lower operating cost than jet mills for many fine grinding ranges (no compressed gas required)
• Robust industrial design with predictable wear management and serviceability
• Seamless integration into turnkey powder processing systems (feeding, mixing, air handling, explosion protection, PLC/recipe control)

Limitations / Considerations

• Higher system complexity and capital cost vs. simple impact mills
• Not ideal for ultra-fine/sub-micron ranges where jet milling is required (difficulty consistently below ~5–10 microns)
• Sensitivity to feed consistency (moisture, stickiness, variable feed size can require upstream conditioning)
• In highly abrasive applications wear on rotors, classifier wheels and liners increases maintenance frequency

Brochure & Documentation
Brochures and selection guides are available describing DP Air Classifier Mills, general company brochures, and mill selection guidance (PDF brochures referenced on the product page).

Technical characteristics / Specifications

• Typical particle size control range: ~10 μm to 200 μm (application dependent)
• Operation: continuous closed-loop grinding and dynamic air classification
• Main controls: independent rotor and classifier speed control, airflow control, feed rate control via PLC/VFD
• Product discharge: cyclone or filter collection, option for air recirculation
• Feed systems supported: screw feeder, rotary valve, loss-in-weight feeder
• Materials of construction and liners: selected for wear resistance and regulatory/cleanability needs
• Integration options: precision feeding/dosing, dust collection, explosion protection/inerting, PLC recipe control, turnkey system integration
