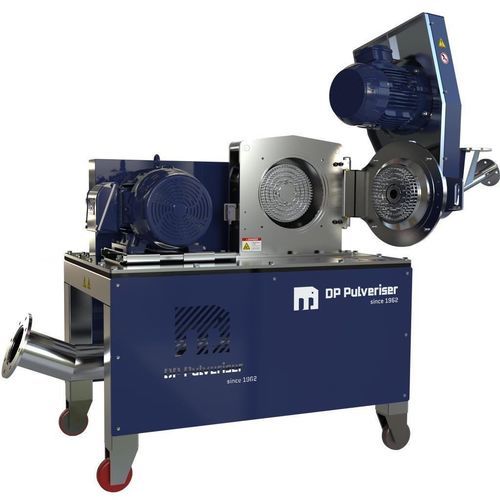

Rubber mill

foodfor plasticsfor spices

Overview
DP Pulverizer cryogenic mills are integrated process systems that use liquid nitrogen to enable ultra-fine, contamination-minimized grinding of heat-sensitive, sticky, elastic or oily materials. These solutions combine cooling, feed, milling, temperature control, product collection and gas handling to deliver repeatable particle-size targets across pilot and production scales.

What is a Cryogenic Mill?
A cryogenic mill cools material to very low temperatures (commonly with liquid nitrogen) so ductile, elastic or oily substances embrittle and fracture cleanly under mechanical impact or shear, enabling efficient size reduction.

Why Cryogenic Milling Exists

• Prevents heat buildup and thermal degradation during milling
• Avoids smearing or melting that prevents clean fracture
• Allows milling of elastic and rubber-like materials
• Reduces agglomeration and clogging for sticky or oily feeds

How Cryogenic Milling Changes Material Behavior

• Polymers become brittle and fracture rather than deform
• Rubbers and elastomers lose elasticity and can be ground to target particle sizes
• Oils and fats solidify, enabling effective comminution
• Sticky materials lose tackiness, improving flow and handling

Typical Cryogenic Milling Temperature Range
Operating temperatures typically range from approximately −80°C to −196°C depending on material properties and cooling method; liquid nitrogen is most used due to availability and inertness.

Common Applications

• Plastics and polymers
• Rubber and elastomers
• Spices, herbs and food ingredients
• Nutraceuticals and botanicals
• Pharmaceutical APIs and heat-sensitive compounds
• Specialty chemicals, pigments, adhesives, waxes and resins
• Biomaterials, recycling and battery material processing

Cryogenic Milling as a System
Cryogenic milling is delivered as a coordinated system: cryogen storage and injection, pre-cooling or conditioning feed, a cryogenic-rated mechanical mill (pin, hammer or impact type), temperature monitoring and control, product collection (cyclone, filter, sealed container) and exhaust/venting with oxygen monitoring. Tuning feed rate, mill speed and nitrogen injection is required to reach consistent particle-size distribution while optimizing LN₂ consumption.

Why Cryogenic Milling Delivers Superior Product Quality

• Cleaner particle fracture and narrower particle-size distribution
• Reduced oxidation and lower thermal degradation in inert atmosphere
• Improved particle shape, flowability and preserved potency or functionality
• Higher usable yield with less rework and minimized over-grinding

Advantages of DP Pulverizer Cryogenic Mills

• Engineered as integrated cryogenic systems rather than after-market nitrogen additions
• Consistent milling performance for heat-sensitive, elastic, oily and difficult-to-process materials
• Predictable particle-size control and improved yield
• Optimized LN₂ usage via pre-cooling zones, controlled injection and insulated components
• Continuous-operation and scalable configurations from pilot to production
• Automation and safety features (PLC/HMI, controlled venting, oxygen monitoring, alarms)
• Reduced wear and lower maintenance downtime under cryogenic conditions

Disadvantages / Considerations

• Higher operating cost due to continuous cryogen (LN₂) consumption
• Increased system complexity compared with ambient milling (cryogenic tanks, insulated piping, injection controls, ventilation and O₂ monitoring)
• Higher initial capital expenditure for cryogenic-rated components and integrated automation
• Facility requirements: space for cryogenic storage, ventilation for nitrogen exhaust and regulatory compliance
• Not required for materials that mill cleanly at ambient temperature

System Components (typical)

• Feed: screw feeders, belt or vibratory feeders, rotary valves or loss-in-weight feeders
• Cryogenic supply: LN₂ storage, cryogenic valves, injection nozzles, insulated piping
• Pre-cooling/conditioning conveyors or zones to ensure uniform embrittlement
• Cryogenic-compatible mills: pin mills, hammer mills, impact mills rated for cold operation
• Temperature monitoring and control: sensors, nitrogen injection control, feed/residence-time regulation
• Product collection: cyclones, bag/cartridge filters, sealed discharge containers, inert blanketing
• Nitrogen exhaust and ventilation with controlled venting and oxygen monitoring
• Control and automation: PLC/HMI, recipe-based operation, alarms and coordinated process control
• Structural frame and thermal insulation to minimize heat gain and LN₂ consumption

Typical Performance Outcomes

• Clean fracturing rather than deformation for heat-sensitive and elastic materials
• Narrower particle-size distributions and improved flowability
• Preserved flavor, potency and chemical integrity for food, nutraceutical and pharmaceutical materials

Technical specifications

• Cooling medium: Liquid nitrogen (LN₂), inert processing environment
• Typical temperature range: approx. −80°C to −196°C (material dependent)
• Common mill types: Pin mill, hammer mill, impact mill (cryogenic-rated)
• Key elements: feed system, pre-cooling zone, LN₂ injection, cryogenic mill, temperature control, product collection, exhaust/ventilation, PLC/HMI automation
• Product handling: sealed collection and inert blanketing to avoid moisture uptake or oxidation
• Safety: controlled nitrogen injection/venting, oxygen monitoring, pressure-rated and insulated components, PLC alarms
• Applications: food & nutraceuticals, pharmaceuticals, elastomers & plastics, chemicals & pigments, biomaterials & recycling
