measurement software / image-processing / for measuring machines / 2D
M3

{{requestButtons}}

Characteristics

  • Function:

    measurement, image-processing

  • Applications:

    for measuring machines

  • Type:

    2D

Description

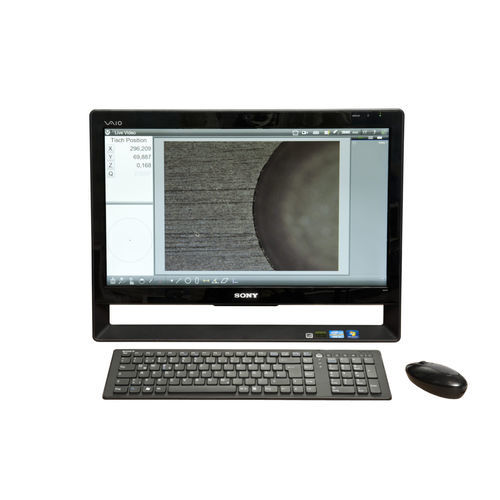

The M3 is a 2D measurement software designed by Schneider. It is suitable for multi-touch applications for camera-based measurement devices used by entry-level users. The system allows easy dimensioning of measured features, and ensures efficient recording and reporting in graphical or tabular form.

The software provides a precise manual measurement of geometrical elements through its multi-touch surface. It allows the user to have a complete overview of all measurement data with its well-lit, high-resolution TFT touch screen in a ratio of 16:9.

The system features a multilingual user interface that an operator learn within a short time. The interface has no hidden sub-menus. It has a detection algorithm for quick and reproducible measurement point acquisition.

The M3 has a tolerance verification compliant with DIN/ISO standards. It allows data export in TXT, TSV, or CSV format.
